lServo type None-pressure Lead edge feeder with vacuum suction,
wind is adjustable depend on sheet, make sure feed sheet smoothly.
lMain motor with start protecting device, machine cannot run when
machine units aren’t lock.
lContinuous or skip feeding available
lDouble feed rollers wrapped with rubber, with groove prevent
overpressure, reduce pressed sheet
lLeft-right baffle adjusted by computer with automatic flap, back
baffle adjusted by motorized, front baffle manual synchronous
adjust.
lDust clearance bush and fan to clean dust on board. Air outlet can
be adjusted as per sheet size
lMachine units move by motorized and move with alarm belling to
make sure safety.
lThe independent electric box controls the whole machine, and each
group can control the machine alone and operate more simply

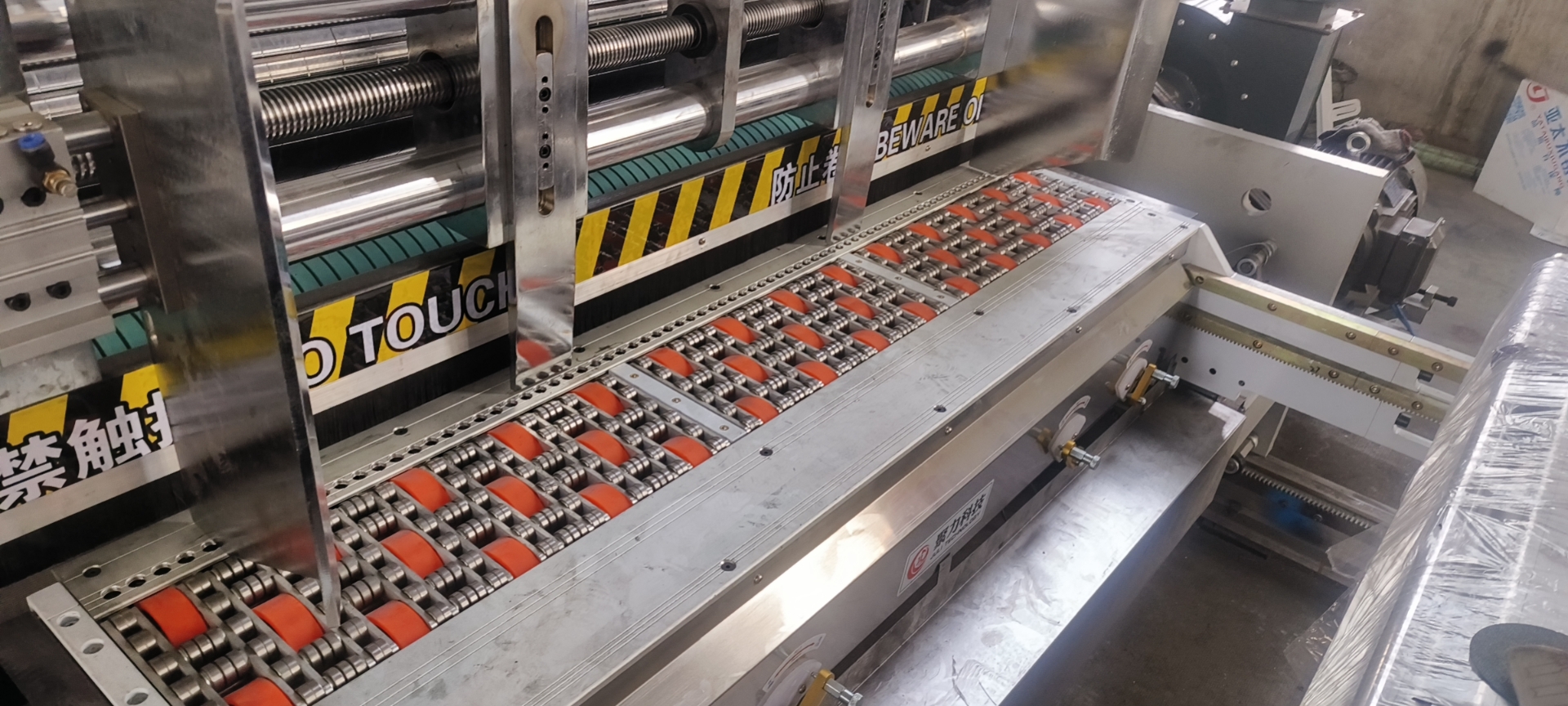

Feeding unit
1. Adopt vacuum absorption lead edge feeder, high pressure
centrifugal fan auxiliary feeding paper, wind adjustable.
2. adopt unique quick change type half wheel mechanism to ensure
the consistency of feeding position, avoid feeding wheel circle
wear is not the same, and replacement is very convenient.
Printing unit
1. The ink supply device is provided with an ink penetration
leather pad and a sputtering ink return mechanism,,to prevent ink
outside impact printing quality.2. With a digital display of the function of the planetary gear
type accompanied by the adjustment of the plate is electric phase
adjustment.3. Metal anilox roller with rubber roller.
4. Optional: Ceramic anilox roller with doctor blade
Printer Unit
Quick set and self locking pull collars.
►Anilox roller LPI according to customer requirement.
►The printing roller axial clearance manual adjustment, adjustment
range + 5 mm.
►The printing roller to 360 degrees of digital phase adjustment of
the computer electric motor, can be preset digital automatic
adjustment (operation, stop can be adjusted).►plate rod and the transmission gear with free bond collar,
convenient disassembly, maintain long-term printing color accuracy.
Die-cutting part:
1. Axial position cycling moving automatically
2. Choose excellent durable rubber imported from Taiwan
3. With repair-auto rubber device
4. Track and compensate after lower and upper roller repair
5. Slotting slitting knife is special designed and installed on
special fixtures , four blade can sync adjust box height . Load and
install is convenient and it can replace rotary slotting machine .
Blade incision is smooth
6.Die-cutting roller lift pneumatically and make rubber good when
idling and phase adjustment to save cost
7. Rubber shaft axial moving 40mm automatically . Creasing not
repeat and improve rubber using life
8. Rubber shaft with repair device auto and can repair 3-4 times
