Carton Box Flexo Printing Die Cutting Machine box making machinery 300pcs/min

Ask Lasest Price
Brand Name :	HS
Model Number :	900X2000
Certification :	CE
Price :	USD200000...
Payment Terms :	T/T
Supply Ability :	20 units/month
Delivery Time :	90 days

Add to Cart

Product Details
Company Profile

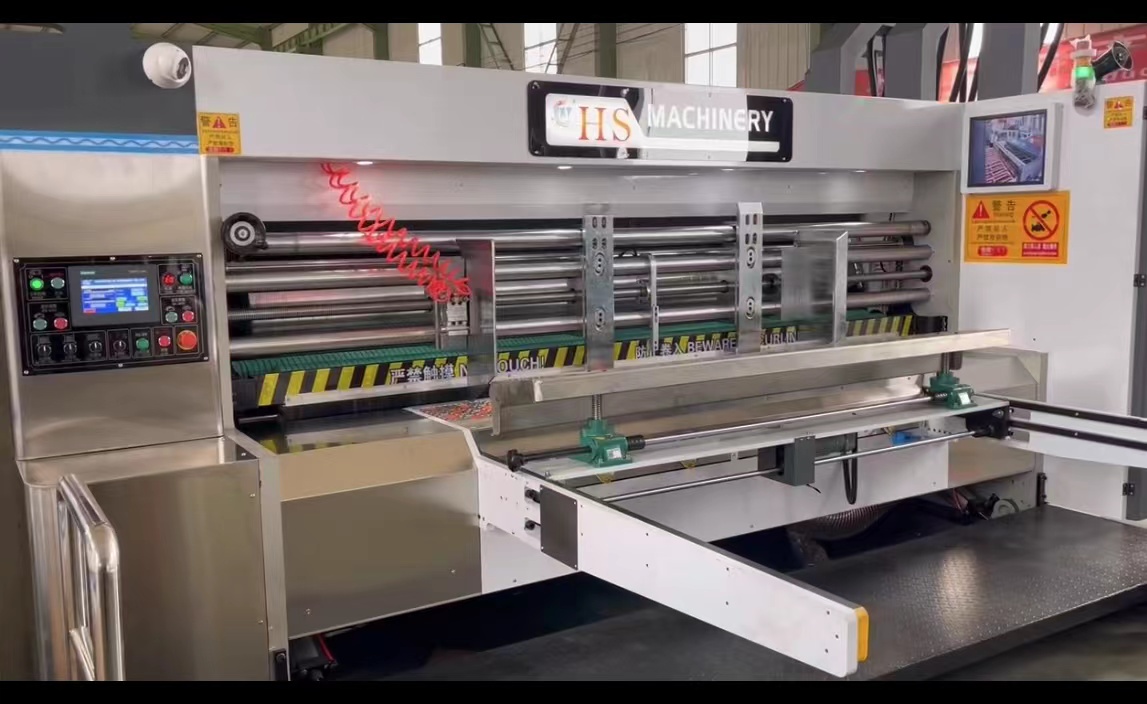

Carton Box Flexo Printing Die Cutting Machine box making machinery 300pcs/min

Flexo Printing And Die Cutting Machine

High-Speed Carton Box Making Machine

900x2000mm

Model	600x1800	900x2000	900x2200	1200x2400
Max. Speed (pcs/min)	350	300	300	250
Max. Feeding Size (mm)	600×1800	900×2000	900×2400	1200×2400
Min. Feeding Size(mm)	200×435	270×600	270×600	320×600
Skip Feeding(mm)	800×1800	1200×2000	1200×2400	1500×2400
Max. Printing Size (mm)	600×1760	900×1960	900×2360	1200×2360
Min. Slotting(L:mm)	180×55× 180×55	240×65× 240×65	240×65× 240×65	260×65× 260×65
Min. Slotting (R: mm)	110×110× 110×110	130×130× 130×130	130×130× 130×130	130×130× 130×130
Max. Slotting Depth (mm)	200	250	250	300

Description:

The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with "automatic zero return" and "memories" function ( options: PLC control with touch screen)
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.

Auto feeder department:

1． The machine clutch:

1)The machine clutch electric control with alarm, moving last warning bell ring,

Ensure workers safety.

2)Pneumatic interlocking device, Locking is firm, convenient and accurate.

3)The main motor adopts frequency conversion motor, frequency conversion controller, energy saving, stable starting,

attached to the motor start protection device.

4) main engine self-locking function: the unit didn’t completely locking state, the main engine cannot be started, ensure the safety of the operator and machine; Host under normal working condition, the on-off function is automatically locked, avoid the wrong operation of the machine and personnel injury.

Printing Unit

1.All the axle and roller was used the high grade steal , computer dynamic balance; eliminate the centrifugal effect, plated with rigid chrome and grinded surface.
2.Printing phases was adopted the planetary gear structure, the electric digit 360 °adjustment , show the digit(stop, running can adjustment).
3.Printing roller landscape orientation was adopted the touch screen control, and electric digit adjustment, the adjustment scope is 20mm.

Die cutting unit

1.The die cutter roller (down roller)

1)Outer diameter is: ɸ360mm . (not including die cutting mould )

.Centrifugal casting steel cylinder, the computer dynamic balancing correction, surface grinding, hard chromium plating, and increase the running stability.

.Die cutter mould fixed screw holes spacing of 100 * 100 mm

4)Apply to die cutting mould height 25.4 mm

.Die cutting thickness is :16 to 18 mm (three layer board), 13-15 mm

(five layer board).

2, rubber roller (up roller)

1)The outer wall is: ɸ388mm

2)Cast steel material, surface grinding, hard chromium plating.

3)Balance correction, increase the running stability.

4)Electric digital and PLC touch screen and cutting die roll gap adjustment.

5)Rubber gasket thickness 10 mm, ( outside diameter is: ɸ404mm ), width is 250 mm.
