Non Bond Joining Carton Printing Machine With Slotter Die Cutter

Ask Lasest Price
Brand Name :	HS
Model Number :	1600x2800
Certification :	CE
Price :	USD200000...
Payment Terms :	T/T
Supply Ability :	20 units/month
Delivery Time :	90 days

Add to Cart

Product Details
Company Profile

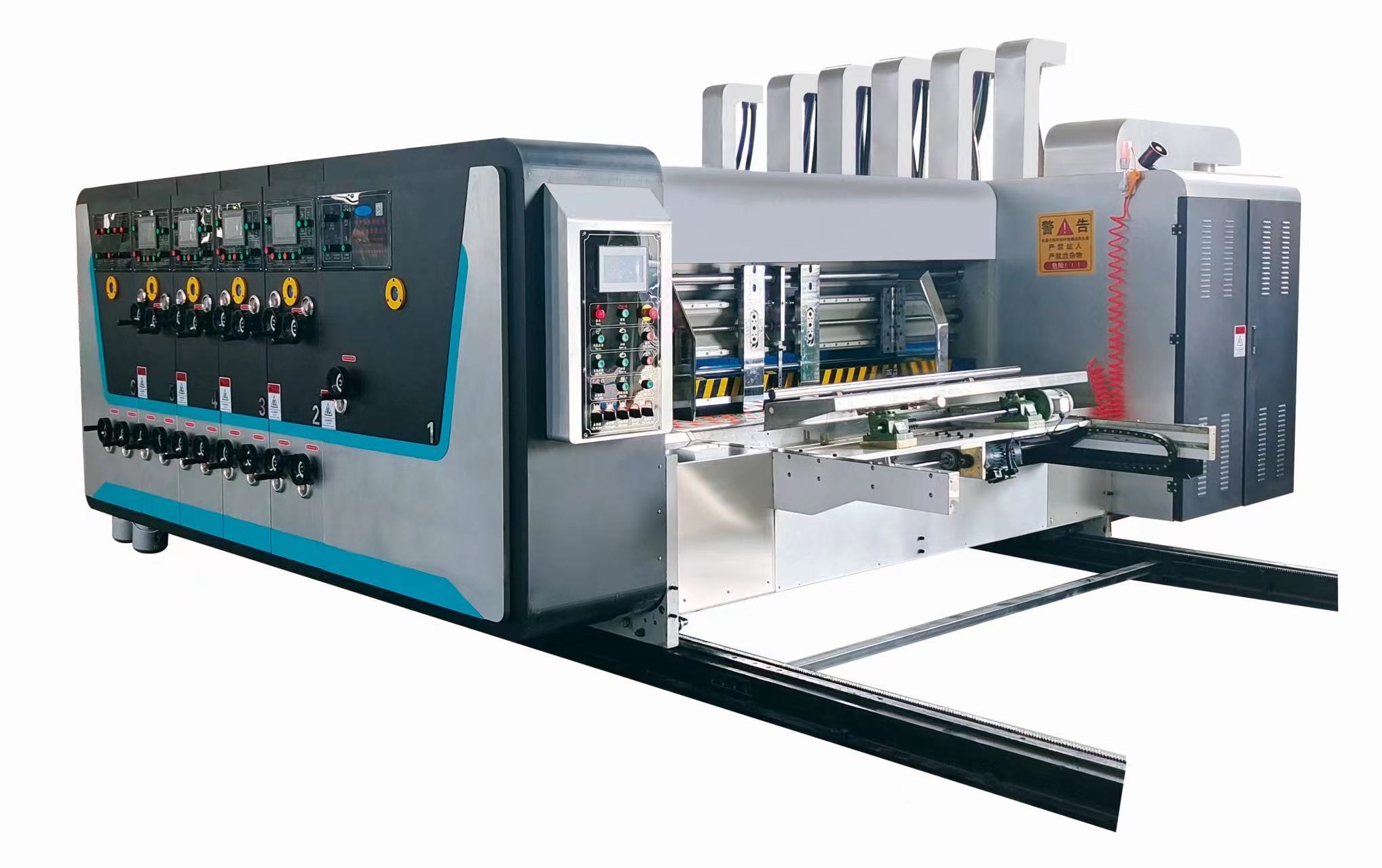

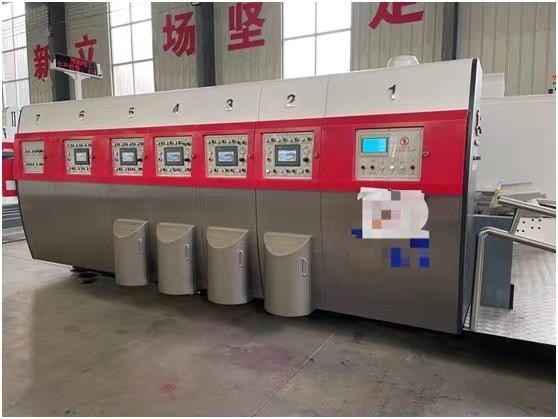

Non Bond Joining Carton Printing Machine With Slotter Die Cutter

Carton Printing Machine With Slotter & Die Cutter

1600x2800mm

Model	1600x2800	1600x3200	1600x3600
Max. Speed (pcs/min)	180	180	160
Max. Feeding Size (mm)	1600×2800	1600×3200	1600×3600
Min. Feeding Size(mm)	450×600	450×600	450×600
Skip Feeding(mm)	1900×2800	1900×3200	1900×3600
Max. Printing Size (mm)	1600×2760	1600×3160	1600×3560
Min. Slotting(L:mm)	260×65× 260×65	260×65× 260×65	260×65× 260×65
Min. Slotting (R: mm)	130×130× 130×130	130×130× 130×130	130×130× 130×130
Max. Slotting Depth (mm)	400	400	400

Carton Box Flexo Printing Machine Introduction

1. Electrical adjustment of grooving phass with data displayed.
2. 360 degree adjustment of grooving phases with data displayed.
3. Intergrated adjustment of carbon box grooving clearance and pressing trace clearance.
4. The mid blade is move able, which makes processing of over-sized boxes easy.
5. The axis handles possessionas as a result of grinding chromate treatment.
6. Central filling of lubricant on 45# forged gears makes low noise and stable running.
7. Non-bond joining ensures long-term accurately.

Feeding unit

1. Adopt vacuum absorption lead edge feeder, high pressure centrifugal fan auxiliary feeding paper, wind adjustable.

2. adopt unique quick change type half wheel mechanism to ensure the consistency of feeding position, avoid feeding wheel circle wear is not the same, and replacement is very convenient.

Printing unit

1. The ink supply device is provided with an ink penetration leather pad and a sputtering ink return mechanism,,to prevent ink outside impact printing quality.

2. With a digital display of the function of the planetary gear type accompanied by the adjustment of the plate is electric phase adjustment.

3. Metal anilox roller with rubber roller.

4. Optional: Ceramic anilox roller with doctor blade

Die-cutting part:

1. Axial position cycling moving automatically

2. Choose excellent durable rubber imported from Taiwan

3. With repair-auto rubber device

4. Track and compensate after lower and upper roller repair

5. Slotting slitting knife is special designed and installed on special fixtures , four blade can sync adjust box height . Load and install is convenient and it can replace rotary slotting machine . Blade incision is smooth

6.Die-cutting roller lift pneumatically and make rubber good when idling and phase adjustment to save cost

7. Rubber shaft axial moving 40mm automatically . Creasing not repeat and improve rubber using life

8. Rubber shaft with repair device auto and can repair 3-4 times
