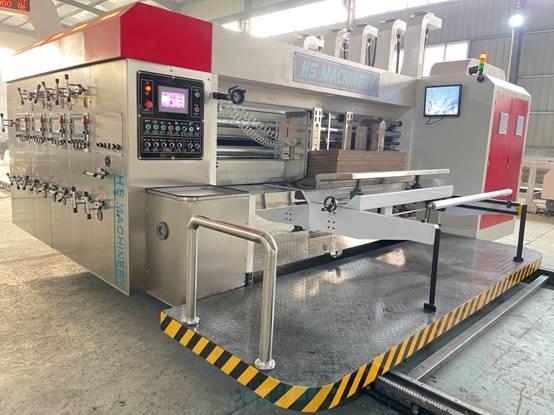

450×600mm Feeding Corrugated Box Manufacturing Machine With Automatic Vacuum Feeding Unit

Guangzhou HS Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 450×600mm Feeding Corrugated Box Manufacturing Machine With Automatic Vacuum Feeding Unit from wholesalers

    Buy cheap 450×600mm Feeding Corrugated Box Manufacturing Machine With Automatic Vacuum Feeding Unit from wholesalers
    • Buy cheap 450×600mm Feeding Corrugated Box Manufacturing Machine With Automatic Vacuum Feeding Unit from wholesalers

    450×600mm Feeding Corrugated Box Manufacturing Machine With Automatic Vacuum Feeding Unit

    Ask Lasest Price
    Brand Name : HS
    Model Number : 1600x3200
    Certification : CE
    Price : USD200000...
    Payment Terms : T/T
    Supply Ability : 20 units/month
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    450×600mm Feeding Corrugated Box Manufacturing Machine With Automatic Vacuum Feeding Unit

    Corrugated Box Manufacturing Machine

    1600x3200mm


    Model1600x28001600x32001600x3600
    Max. Speed (pcs/min)180180160
    Max. Feeding Size (mm)1600×28001600×32001600×3600
    Min. Feeding Size(mm)450×600450×600450×600
    Skip Feeding(mm)1900×28001900×32001900×3600
    Max. Printing Size (mm)1600×27601600×31601600×3560
    Min. Slotting(L:mm)260×65× 260×65260×65× 260×65260×65× 260×65
    Min. Slotting (R: mm)130×130× 130×130130×130× 130×130130×130× 130×130
    Max. Slotting Depth (mm)400400400

    Machine Main Function

    (1), This machine is have automatic vacuum feeding unit , Printing unit , Slotting unit , Die cutting unit . it is can complete the printing slotting die cutting make the corrugated paperboard processing .

    (2) , The machine body material is carbon stell , the machine wallboard is 60 mm . through long time heating treatment , CNC machine to make , with high strength and precision .

    (3) , Machine gears is spiral gears , low noise and high precision , through many times frequency and grinding , ensure the machine quality .

    (4) , The gear material is 20CrMnti alloy steel,after high frequency heating and grinding.and the main transmission gear and roller adopt expansion sleeve connection.

    (5) , Bearing used famous brand at home and abroad , such as HRB , NSK .

    (6), The machine used Frequency converter , brand Delta from Taiwan . The PLC , Touch Screen adopt Delta Brand From Taiwan . The Contactor adopts Seimens . All electric appliances can be choosed by you need .

    (7), Cerimaic anilox roller , are made by China famous brand .

    (8) , Doctor blade , famous brand in China .

    (9) , Machine with the electric box and seperated control every units . full machine with internet control system,with internet can control all machine system.
