Cardboard Box Printing Machine High Speed Carton Printing Slotting
Die Cutting Machine
Model:jumbo1800x4200
Machine Features:
1.Control on the main console and each unit console with display
adjustment system, store repeated order, easy for operation.
2.Motorized plate mounting, auto reset, quick order change.
3.Each unit is equipped with emergency stop switch to ensure safe
operation.
4.Using self-locking gap adjustment device for easy operation.
5.Transmission gears are made by precision and grinded alloy steel.
The transmission system is equipped with spraying circulating
lubrication system.
Features and Benefits of a Cardboard Box Printing Machine
1. High Production Output
A cardboard box printing machine is capable of producing thousands
of cardboard boxes in a single hour. With its high-speed printing,
slotting, and die-cutting capabilities, the machine can
significantly increase production output while reducing production
times. This high production output makes the machine an excellent
addition to printing and packaging houses that require large
volumes of cardboard boxes.
2. Versatility
A cardboard box printing machine is versatile and can print on
various cardboard sheet sizes and thicknesses. The machine's
ability to handle different-sized sheets makes it ideal for
printing boxes of different shapes and sizes, thereby increasing
the production house's customisation capabilities.
3. High-Quality Printing
A high-speed carton printing, slotting, and die-cutting machine
employs advanced printing technology to produce high-quality,
full-color graphics on the cardboard box. The machine uses various
printing methods, including flexography, lithography, and digital
inkjet printing, to produce sharp, vibrant, and long-lasting
prints. This high-quality printing feature helps to differentiate
the product on the shelves and increases the overall appeal of the
product to the customers.
4. Reduced Production Time and Costs
With its high-speed printing, slotting, and die-cutting
capabilities, a cardboard box printing machine significantly
reduces production times and costs. The machine eliminates the need
to handle corrugated sheets separately and automates the entire
process, reducing the need for manual labour and the potential for
human error. This automation of the process not only makes the
production more efficient but also reduces the overall production
costs.
5. Improved Efficiency
A cardboard box printing machine is designed to print, slot, and
die-cut the cardboard box in one pass, thereby increasing
production efficiency. Additionally, the machine reduces downtime
and maintenance costs as it is equipped with sensors that detect
faults and issues in the production process, allowing for a prompt
response and repair of any issues.
6. Reduced Environmental Impact
A high-speed carton printing, slotting, and die-cutting machine is
designed to minimise the environmental impact of the production
process. The machine employs eco-friendly printing methods, and the
use of corrugated sheets reduces the need for plastic packaging.
The machine's efficient use of materials and reduction in
production waste contributes to a sustainable production process.
Standard equipments:
A. Independent Lead Edge Feeder;
B. printers with chrome anilox rollers
C. motorized slotter
D. RotaryDie Cutter with auto trimming device;
E. Auto Stacker
| Model | 1600x3600 jumbo | 1800x4200 jumbo | 1800x3600jumbo | 2200*3600 jumbo | 2200*4000 jumbo | 2200*4600 jumbo | 2600*3600 jumbo |
| Machine Speed(m/min) | 150 |
150 | 150 | 120 | 100 | 80 | 80 |
| Machine Max.speed (pcs/min) | 110 |
100 |
100 | 100 | 80 | 60 | 60 |
| Machine Max.feeder Size(mm) | 1500x3600 |
1700x4200 |
188x3600 | 2000x3600 | 2100x4000 | 2100x4600 | 2500x3600 |
| Machine min.feeder Size(mm) | 450x760 | 450x750 | 450x760 | 550x900 | 550x900 | 550x900 | 650x900 |
| Machine Max. printer size (mm) | 1500x3500 | 1600x4000 |
1600x33400 | 2000x3400 | 2000x3800 | 2000x4200 | 2400x3400 |
| thick of printer Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Max. slotter Dep (mm) | 560 | 750 | 750 | 750 | 750 | 750 | 850 |
| Max. Thickness of Sheet(mm) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Machine size (LxWxH)
| 19852x6670x2700 | 15000x5200x2500 | 14000x4500x2300 | 20173x6670x2800 | 20173x7070x2800 | 20173x7670x2800 | 20495x6670x3000 |
Independent Lead Edge Feeder
| Item | Descriptions |
1. Lead Edge Feeding system | 1.Vacuum transfer lead edge feeder. 2.Back buffle and side buffle are all motorized adjustment. 3.Feeder sliding block is of aluminum structure to guarantee a more
stable working with less vibration. 4.Sheet counting in touch screen. 5.Skip feeding for bigger sheet. 7.Pneumatic lift device with end chain-lock switch for convenient
operation. |
| 2. Machine open/cloe | 1.Button auto control for machine open/close with alarm device to
safeguard operators. 2.Pneumatic locking system, whole machine locked on fixed track by
feeder main pneumatic cylinder. |
| 3. Feeding roll | 1. Endurable rubber-coated feeding roll to add use life. |
| 4. Zero return device | 1.Computer adopts zero return device with memory function to
guarantee the same adjustment standard, auto adjustment of correct
position to reduce the waste of boards. |
Features of printing units
| Item | Features |
1. Printing cylinder | 1.Printing phase adjustment adopts satellite gear wheel structure,
PLC control, digital display, 360 degree circumferential
adjustment, stable start, correction positioning. 2.Grinded printing cylinder with harm chrome, with cross line and
center line, for convenient cliché fixation and sticking, correct
positioning and quick cliché registration. 3.Balance treatment, stable running, for high speed running. 4. Quick and convenient fixing system for the printing cliché. 5. Quick cliché change system to speed up the order renewal time. 6.Zero position device for printing cylinder for quick positioning
of cliché change and correction, for repeated carton specification
change. Foot stepping device for cliché fixation and dismantling.
Phase micro adjustment. 7. Printing cylinder left/right movement distance: 10mm. 8. Diameter of printing cylinder: ø524mm,ø304mm(with cliché
thickness) |
| 2. Impression cylinder(ø156mm) | 1.Seamless steel pipe for precise
processing, balance treatment for stable running, grinding and hard
chromed. 2.Impression cylinder gap adopts adjustable offset ring, with close
structure, precise positioning, adjustment scope: 0-12mm. |
| 3. Feeding roll | 1.Up feeding roll: grinded and hard chromed. 2.Lower feeding roll: grinded, sand-frosted and hard-chromed. 3.Lower feeding shaft gap adjustment adopts offset ring with close
structure, correction positioning, adjustable at 0-12mm. |
4. Rubber roll
| Seamless steel pipe for precise
processing, balance treatment for stable running, grinding and hard
chromed. 2.Steel pipe rubber-coated durable for longlife. 3.Super clutch and auto empty run device against ink dry. 4.Midheight grinding for high LPI big space printing. 5. Rubber roll open/close adopts worm gearbox manual adjustment,
with worm gearbox for gap adjustment with scale indication. |
| 5. Anilox roll | 1. Seamless steel pipe for precise processing, balance treatment
for stable running, grinding and hard chromed. 2.Longlife running, anti-grinding and erosion, ideal ink
transferring and controlling performance. 3.Pneumatic anilox auto elevation device and empty run device. 4.Speed difference between anilox roll and rubber roll for ink
doctoring effect to increase printing quality. |
| 6. Inking system | 1.Single-way pneumatic membrane auto circulating pump. 2. Ink filtering net to filter the dirt for nice printing result. 3.Encased ink chamber. |
| 7. Phase adjustment structure | 1.Satelite gear wheel design. 2.Motorized circumferential adjustment, digital display, 360 degree
run or stop adjustment. 3.PLC control, quick reach, convenient for cliché adjustment. 4. Manual gap Pressure adjustment for all units. |
| 8. Printing cylinder fixed device | 1.Electromagnetic braking structure. 2.When machine unit separates or adjust phase, braking system to
control the running of machine units to keep original gear
positioning point. |
| 9. Printing cylinder fixed device | 1.Electromagnetic braking structure. 2.When machine unit separates or adjust phase, braking system to
control the running of machine units to keep original gear
positioning point. |
Features of slotting unit
| Item | Features |
| 1. Slotting phase adjustment | 1.High precision inverter to adjust the speed, 360 degree
adjustment, quick time. 2.Phase zero positioning device to guarantee slotting position
sameness. |
| 2. Creasing wheel | 1.Manual/motorized adjustment of creasing wheel and slotting knife
head position through precise screw pole. 2.Creasing wheel down shaft, slotting knife down shaft adopt offset
ring, close structure for precise positioning. |
| 3. Slitting and slotting knife head | 1.Blade thickness:7mm. Imported high quality alloyed moon-shaped
saw slotting blades, high hardness, high endurability, high
grindability. 2.Grinded and hard-chromed slotting shaft for stable running. 3.Manual adjustment of slotting knife head, creasing wheel and
slitting knife head. 4.Auto detection device of slotting shaft circumferential position,
auto record of the position and guarantee the position auto return. 5. Pre-creaser fixed before slotter. 6. Front knife and back knife seated on one shaft. |

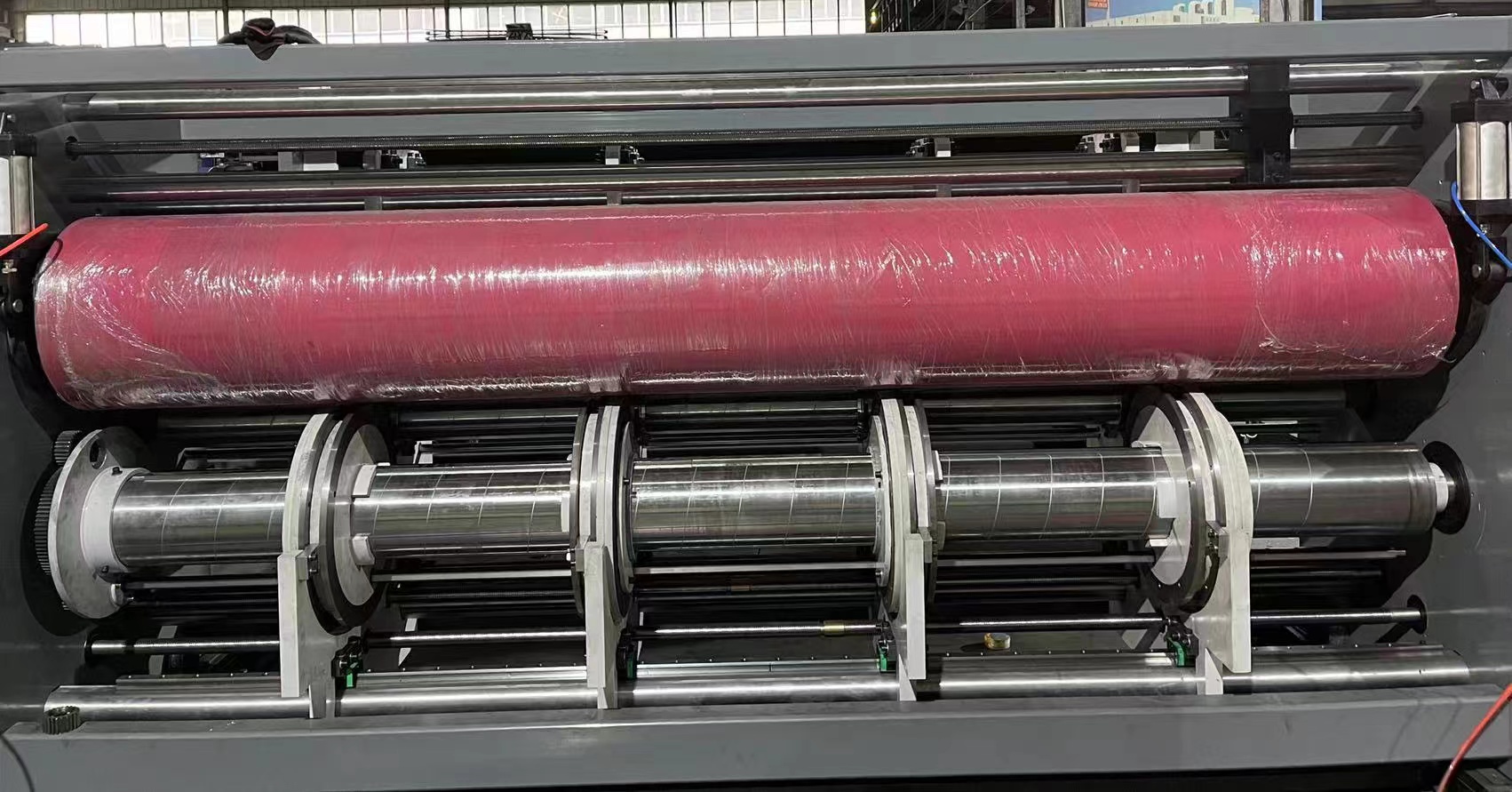

Features for Rotary Die Cutting Unit
| Item | Features |
1. Die cutting mould cylinder( Down cylinder) | 1.Die cutting cylinder is made by high quality steel, fine
grinding, hard chromed. 2. Balance treatment to increase stable running. 3.Die cutting mould fixation screws M10, hole distance at 100mm at
transversal direction and 18 equal units at circumferential
direction. 4.Die cutting wooden mould thickness 13-15mm(five ply),
16-18mm(three ply). |
2. Rubber mat cylinder(Down cylinder) | 1.Mat cylinder uses high quality steel, grinding, hard chromed. 2.Balance treatment for stable running. 3.Rubber mat thickness 8mm, width 250mm. 4.Rubber mat cylinder mechanical rotary direction change 40mm
distance movement structure, movement speed same as the machine
running speed. 5.Manual adjustment of die cutting mould gap, adjustment range:
0-16mm. |
| 3. Phase adjustment device | 1.Satellite gearwheel structure 2.PLC and encoder control of die cutting phase adjustment for start
and stop adjustment. |
| |
