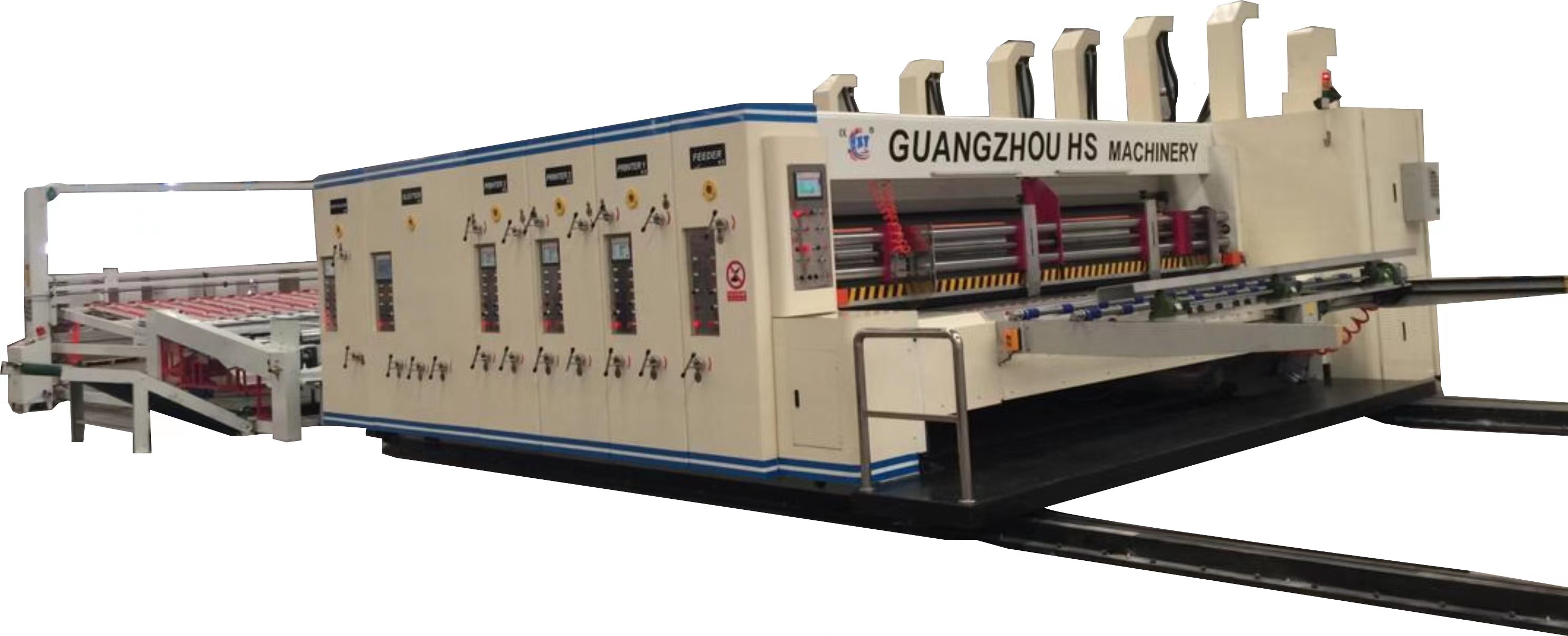

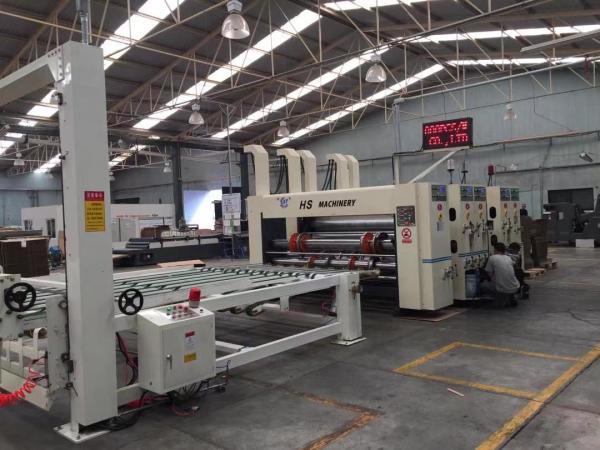

Corrugated carton box machine
Model: 1800x3600
OVERALL
1. The machine to adopt international famous brand, quality stable
and reliable.
2. Whole wallboard and important components, are bright with aging
treatment, eliminate the metal stress, all bright made of
high-pression machining center. CNC grinding machine for grinding
processing.
3. The machine shaft, roller adopt high quality steel, tempering,
the tempering treatment, grinding
processing, high precision computer dynamic balancing correction,
surface hard chromium plating.
4. The engie drive gear adopt 40 Cr alloy steel with good quality
and high frequency sudden firw processing, the grinding processing,
tinted with high precision.
| Sheet size | 1800X3600mm |
| Design speed: | 200pcs/min. |
| Max. working speed: | 120pcs /min.(by sheet size and quality) |
| Max.working size: | 1800X3600 |
| Skip feeding size: | 2100mmX3400mm |
| Min.sheet size: | 350mmX600mm |
| Max.printing area: | 1800X3400mm |
| Cliché thickness: | 7mm |
| Slot width x Slot depth: | 7mmX400mm |
| Max. paper thickness | 10mm |
| Slotting accuracy | ±1.5mm |
| Printing registration(medium speed): | ±0.5mm |
| Mesh mode: | Optional(120-250LPI) |
| Dimension of the whole machine | 15200(L)x4600(W)x2800(H)mm |
| Total power(KW) | 70KW |
| Total weight(Ton) | 60TONS
|
1. Servo type None-pressure Lead edge feeder with vacuum suction,
wind is adjustable depend on sheet, make sure feed sheet smoothly.
2. Main motor with start protecting device, machine cannot run when
machine units aren’t lock.
3. Continuous or skip feeding available4.
Double feed rollers wrapped with rubber, with groove prevent
overpressure, reduce pressed sheet
5. Left-right baffle adjusted by computer with automatic flap, back
baffle adjusted by motorized, front baffle manual synchronous
adjust.
6. Dust clearance bush and fan to clean dust on board. Air outlet
can be adjusted as per sheet size
7. Machine units move by motorized and move with alarm belling to
make sure safety.
8. Fast change printing plate, with footstep to control cylinder
rotate clockwise or anticlockwise
9. Feed roller, press roller, rubber roller, anilox roller gap
adjust with electric self-lock part
10. Printing phase adjusted by PLC in 360degree with digital input,
do when machine running or stop
11. Pneumatic brake device to keep printing register fixed, when
units separate or clean, brake limit gear rotate, keep original
gear position.
12. Pneumatic lift anilox roller for ink, motorized ink will no
dry.
Ask: What machine is used to make corrugated boxes? reply:
corrugated box-making machine is used to make corrugated boxes.
This machine consists of several parts, including a feed section, a
corrugating unit, a gluing section, and a cutting and creasing
section. The corrugating unit has a series of corrugated rolls that
create ridges and valleys in the linerboard. These ridges and
valleys provide strength and cushioning properties to the box. The
gluing section applies adhesive to the corrugated board, and the
cutting and creasing section cuts the board to the desired size and
shape, and folds and creases it into a box.
Electrical auto control system:
1. PLC control, auto sheet counting, speed indication, skip
feeding, trouble alarming, etc..
2. Main electrical parts are of Schneider or Omron or Siemens.
3. Main machine start protection: no lock, no run, for wrong
operation.
4. Motorized walk: motorized open and close, pneumatic lock.
Motorized walk with continuous alarming to safeguard the
maintenance technicians. Auto braking device to ensure printing
unit non-movement.
5. Emergency stop: inside emergency stop on each unit to stop
machine walking during maintenance.
6. Dust clearance bush and fan to clean dust on board. Air outlet
can be adjusted as per sheet size
7. Machine units move by motorized and move with alarm belling to
make sure safety.
8. The independent electric box controls the whole machine, and
each group can control the machine alone
Usage : 380V, 50HZ, 3 phase, 4 wire (with a transformer for 220V).
