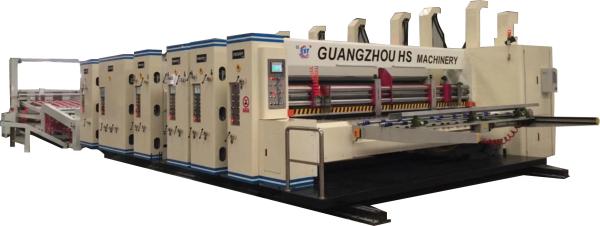

    415v Carton Printing Machine 50KW Flexo Printer Slotter Die Cutter Stacker

    Two Color Carton Printing Machine Printer Slotter Die Cutter Stacker

    Model: 1200x2200

    Product Information.

    1. Printing function: The printing slotting machine can print words, patterns, graphics and so on on the surface of the board.

    2. The mahine absorbed the characteristics of similar foreign to heavy-duty as a wide concept, and strictly in a accorance with mechanical standards, increase the selection of various pars of delivery systems,focusing on tone version,Chuan-ink,transmission structure of the reorganization.

    3. control system, using the latest design concept of mechatronics,computer-phase with the planetary weeks to tune the combination version of the system to achieve non-stop adjustment , the control accuracy of 0.10millimeters

    4. Delivery system, the transmission shaft and gear with free bond connecting ring and the cross slider drive mechanism to achieve seamless gear machine operation . greatly improved accuracy of the printing chromatography.

    5. ink system that uses high-precision network transmission ink roller and rubber roller, and the other and independent motor drive, beyond the clutch to ensure the shutdown stop ink, the ink pneumatic diaphragm pumps, pneumatic lift version.

    6. cut-off machine, automatic locking,power walking,clutch protection

    7. Transmission gear, forged 40 cr quenched and tempered, grinding tooth nitriding processing, oil pump spray lubrication, prolong the service life of the gear, ensure long-term printing color accuracy..

    8 . Front the good luck send a paper way.

    Data and Model1200x2000
    Max.speed(pcs/min)200pcs/min
    Max.sheet (L*W)1200x2200
    Min.sheet (L*W)320x600
    Max.printing(L*W)1200x2000
    Paper thickness3-10mm

    Printing Roller

    1. Printing shaft diameter: 391mm.

    2. Shaft head of the forging parts, cone-shaped transition, roll adopts the seamless steel pipe, after all the processing for dynamic balancing correction

    3. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

    4. Roller horizontal direction and circumferential direction with datum line, convenient for align plate

    5. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

    6. Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

    7. Installed with foot switch to control plate roller reversing, convenient change plate

    8. Auto-zero function, order memory.

    9. Printing roller plate-change and fix-plate function.

    10. Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.
