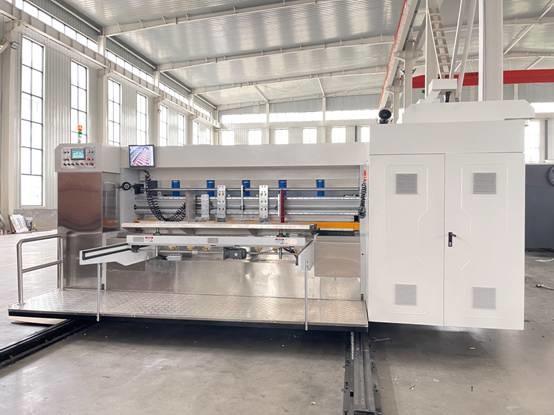

Carton Printing Machine Ink Two Color Printing Slotting Machine
Model:1800x2800
Descriptions
1. Roller type lead edge feeder for precise feeding, long life and
convenience.
2. Main transmission gear using high quality alloyed steel through
chamfered and grinding treatment for precise and stable work.
3. Bearings are of Famous brand: NSK, Chinese brand .
4. Key-free rings for high precise transmission to guarantee the
correct registration.
5. Motorized gap micro-adjustment, convenient and quick.
6. Spray oil lubrication: each gearbox keeps oil for continuous
spray lubrication.
Electrical auto control system:
1. PLC control, auto sheet counting, speed indication, skip
feeding, trouble alarming, etc..
2. Main electrical parts are of Schneider or Omron or Siemens.
3. Main machine start protection: no lock, no run, for wrong
operation.
4. Motorized walk: motorized open and close, pneumatic lock.
Motorized walk with continuous alarming to safeguard the
maintenance technicians. Auto braking device to ensure printing
unit non-movement.
5. Emergency stop: inside emergency stop on each unit to stop
machine walking during maintenance.
Usage : 380V, 50HZ, 3 phase, 4 wire (with a transformer for 220V).
| Sheet size | 1800X2800mm |
| Design speed: | 100pcs/min. |
| Max. working speed: | 90pcs /min.(by sheet size and quality) |
| Max.working size: | 1800X2800 |
| Skip feeding size: | 2100mmX3100mm |
| Min.sheet size: | 350mmX600mm |
| Max.printing area: | 1800X2600mm |
| Cliché thickness: | 7mm |
| Slot width x Slot depth: | 7mmX400mm |
| Max. paper thickness | 10mm |
| Slotting accuracy | ±1.5mm |
| Printing registration(medium speed): | ±0.5mm |
| Mesh mode: | Optional(120-250LPI) |
| Dimension of the whole machine | 11200(L)x4600(W)x2800(H)mm |
| Total power(KW) | 30KW |
| Total weight(Ton) | 30TONS |
Feeder Unit
1. This printing slotting and die cutting machine is provided with
a belt type lead edge feeder which features easy operation and
maintenance.
2. Thanks to the lead edge device, the paperboard can avoid being
warped and feeding error is reduced.
3. Suction hold-down device is typically designed for aiding the
feeding of warped board. The suction strength can be manually
adjusted as per needs. Display on dial ensures convenience.
4. The left and right side gauge movement can be adjusted by
computer. It comes with pneumatic aligning device.
5. Forward and backward back shield movement can also be adjusted
by computer. Angle is manually adjusted.
6. The feeder unit of our A series auto flexo printer slotter die
cutter and stacker is equipped with a dust removing device to
ensure cleaning of the dust and impurity on paperboard, thus
improving printing quality.
Printer Unit
1.Printing phase adjustment adopts satellite gear wheel structure,
PLC control, digital display, 360 degree circumferential
adjustment, stable start, correction positioning.
2.Grinded printing cylinder with harm chrome, with cross line and
center line, for convenient cliché fixation and sticking, correct
positioning and quick cliché registration.
3.Balance treatment, stable running, for high speed running.
4. Quick and convenient fixing system for the printing cliché.
5. Quick cliché change system to speed up the order renewal time.
6.Zero position device for printing cylinder for quick positioning
of cliché change and correction, for repeated carton specification
change. Foot stepping device for cliché fixation and dismantling.
Phase micro adjustment.
7. Printing cylinder left/right movement distance: 10mm.
8. Diameter of printing cylinder: ø524mm,ø304mm(with cliché
thickness)
