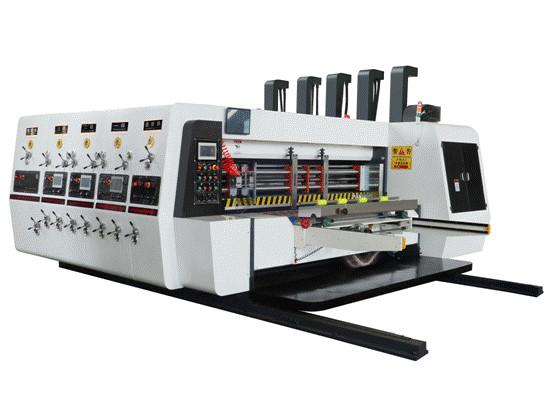

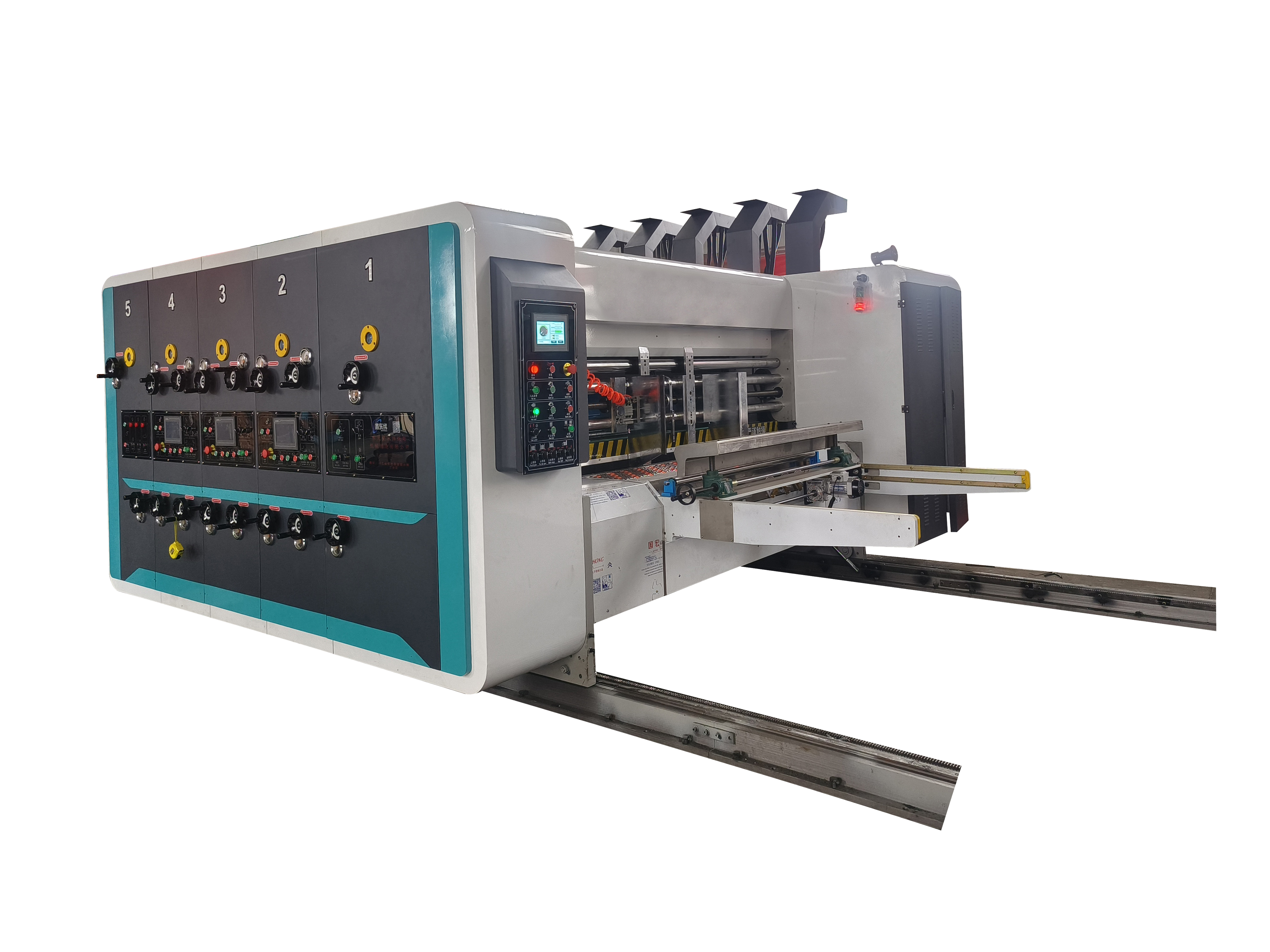

Carton Printing Machine Automatic Printer Slotter Die Cutter
1.Product Description
1. This machine is designed and made to high quality and safety
standard,with the advantages of high speed, auto control and quick
order shift.
2. Auto high quality materials and parts.
3. Well hardened and ground transmission gears, hardness more than
60(HRC).
4. Auto zero return and auto reset.
5. All gaps between cylinders and rollers are computerized and/or
motorized control.
6. Vacuum transfer system used in all printing sections.
7. Use expansion sets tight link to reduce abrasion of the
shaft,keep precision of the machine for long years.
2 . Feeder
1. Leading edge roller paper feeding system
1 The leading edge suction and paper feeding system is easy to
operate and highly accurate (adopting Italian advanced technology).
2 The 7.5KW high-pressure centrifugal fan can adjust the wind
pressure according to the degree of warpage of the cardboard to
ensure the high-speed and accurate transmission of warped cardboard
and thin cardboard.
3 The position of the left and right side baffles is adjusted
electrically by the screw rod.
4 Synchronous adjustment of the upper and lower spacing positions
of the front baffle.
5 Separate sheet feeding device, which can be selected as required.
Ensure that larger-scale cardboard can be processed

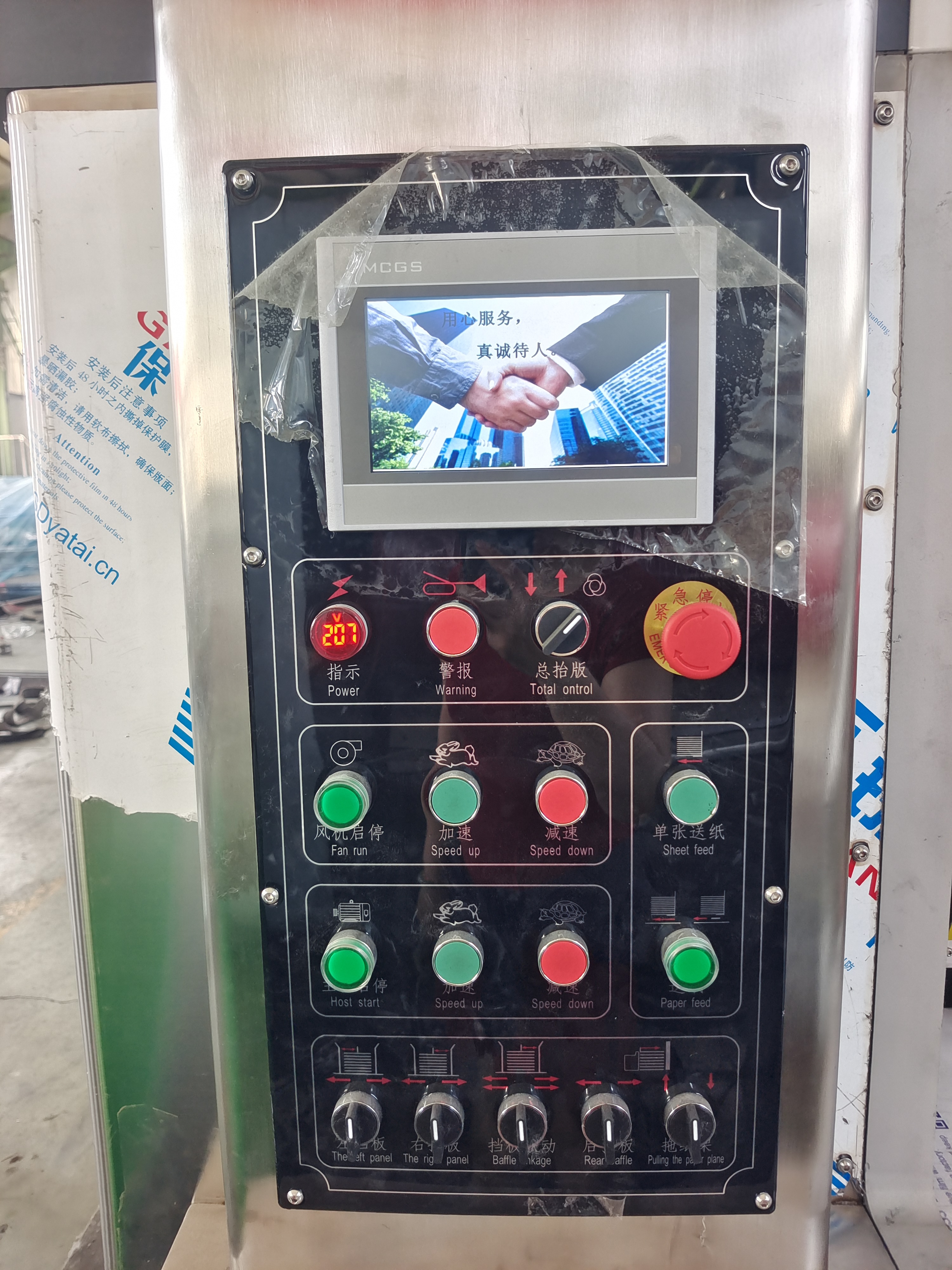

6 Install a 7-inch touch screen, which can automatically display
the production quantity, production speed, and set the production
quantity.
7 The whole machine is equipped with an interlock control switch to
realize emergency stop, stop feeding or resume feeding.
2. Paper feeding roller: dual-pass paper feeding roller with dust
collection function
1 Rubber ravioli on the paper feeding, elastic cushioning and
wear-resistant rubber (soft inside and hard outside) are used for
dynamic balance correction to ensure stable and accurate paper
feeding.
2 The bottom feeding ravioli is embossed and plated with hard
chrome, which is wear-resistant and stable.
3 According to the thickness of the cardboard, the worm gear box
gap is fine-tuned, and it is equipped with a locking device. The
adjustment range is 0-12mm.
3. Printing Roller
1. With printing plate, outer diameter φ300mm
2. High quality steel production, surface grinded, hard
chromium-plated. Static balance adjustment, stable operation,
suitable for high speed running
3. Roller horizontal direction and circumferential direction with
datum line, convenient for align plate
4. Fixed coil axis, suitable for standard hanging slats, realize
rapid change plate
5. Electric 360° adjust printing roller, automatic digital display
adjustment, remember store digital.
6. Installed with foot switch to control plate roller reversing,
convenient change plate
7. Auto-zero function, order memory.
8. Printing roller plate-change and fix-plate function.
9. Printing roll axial is adjusted left and right by manual,
maximum movement left and right 10mm,auto-zero instruction.
| Data and Model | 1200x2000 |
| Max.speed(pcs/min) | 300pcs/min |
| Max.sheet (L*W) | 1200x2200 |
| Min.sheet (L*W) | 320x600 |
| Max.printing(L*W) | 1200x2000 |
| Paper thickness | 3-10mm |
Cost-efficient
Using an auto printer slotter die cutter stacker can save printing
companies a significant amount of money. The machine eliminates the
need for several machines, manual labor, and time. Additionally,
the machine uses less material due to its accuracy in creating
products, and it reduces the chances of wastage.
