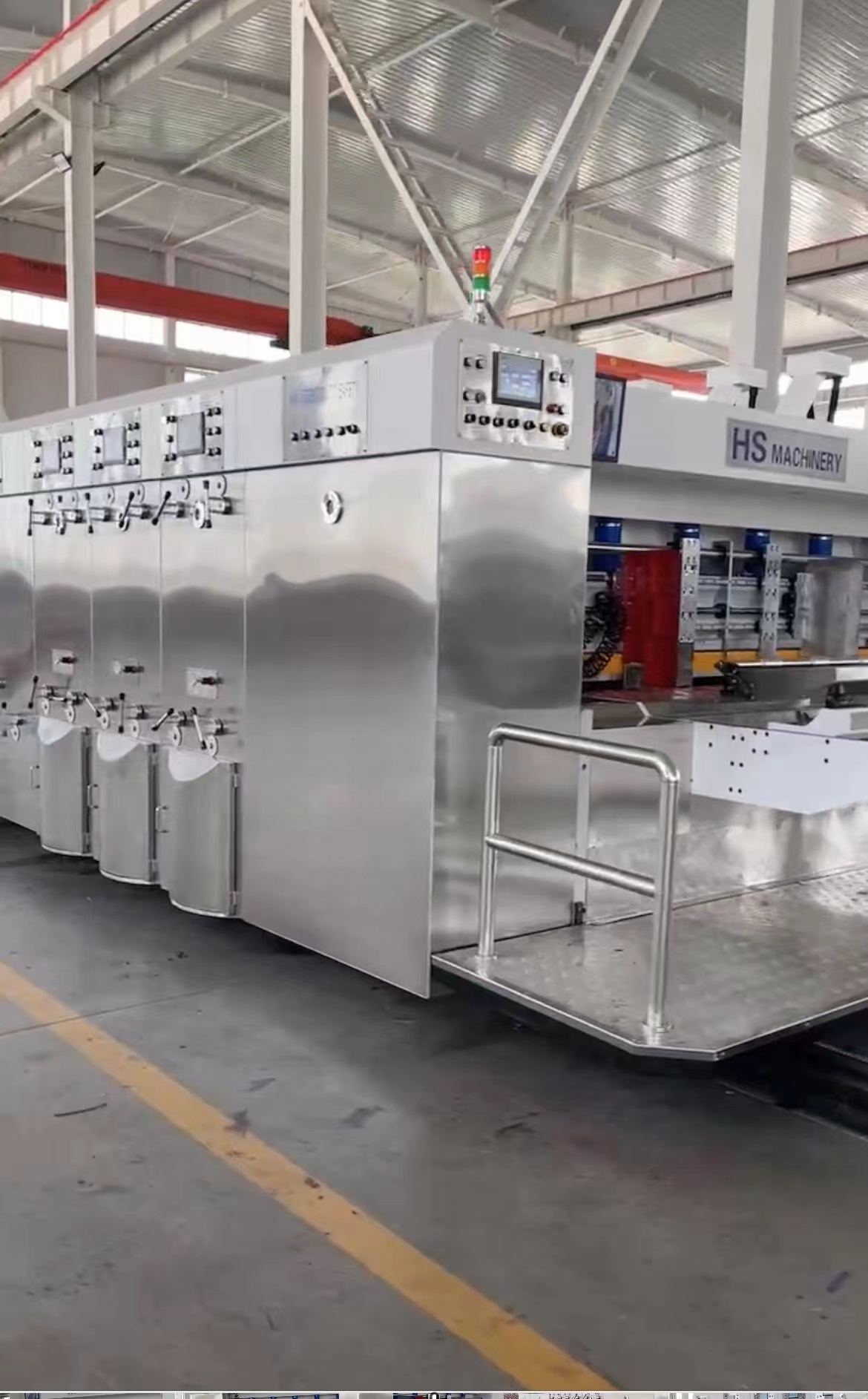

Corrugated Carton Machine 1630 Four Color Printing Slotting Die
Cutting Machine
Model:1600x3000
Key features
1. The mahine absorbed the characteristics of similar foreign to
heavy-duty as a wide concept, and strictly in a accorance with
mechanical standards, increase the selection of various pars of
delivery systems,focusing on tone version,Chuan-
ink,transmission structure of the reorganization.
2. control system, using the latest design concept of
mechatronics,computer-phase with the planetary weeks to tune the
combination version of the system to achieve non-stop adjustment ,
the control accuracy of 0.10millimeters
3. Delivery system, the transmission shaft and gear with free bond
connecting ring and the cross slider drive mechanism to achieve
seamless gear machine operation . greatly improved accuracy of the
printing chromatography.
4. Chuan-ink system that uses high-precision network transmission
ink roller and rubber roller, and the other and independent motor
drive, beyond the clutch to ensure the shutdown stop ink, the ink
pneumatic diaphragm pumps, pneumatic lift version.
4. cut-off machine, automatic locking,power walking,clutch
protection
5. Transmission gear, forged 40 cr quenched and tempered, grinding
tooth nitriding processing, oil pump spray lubrication, prolong the
service life of the gear, ensure long-term printing color
accuracy..
6. Front the good luck send a paper way.
7. The choice install rotary die-cutter machine.set
Basic Components
| Model | 1600x3000 |
| Machine Speed(m/min) | 200 |
| Machine Max.speed (pcs/min) | 150 |
| Machine Max.feeder Size(mm) | 1600x3000 |
| Machine min.feeder Size(mm) | 450x760 |
| Machine Max. printer size (mm) | 1500x2900 |
| thick of printer Plate(mm) | 7.2 |
| Max. slotter Dep (mm) | 560 |
| Max. Thickness of Sheet(mm) | 15 |
Machine size (LxWxH)
| 19852x6670x2700 |
Independent Lead Edge Feeder
| Item | Descriptions |
1. Lead Edge Feeding system | 1.Vacuum transfer lead edge feeder. 2.Back buffle and side buffle are all motorized adjustment. 3.Feeder sliding block is of aluminum structure to guarantee a more
stable working with less vibration. 4.Sheet counting in touch screen. 5.Skip feeding for bigger sheet. 7.Pneumatic lift device with end chain-lock switch for convenient
operation. |
| 2. Machine open/cloe | 1.Button auto control for machine open/close with alarm device to
safeguard operators. 2.Pneumatic locking system, whole machine locked on fixed track by
feeder main pneumatic cylinder. |
| 3. Feeding roll | 1. Endurable rubber-coated feeding roll to add use life. |
| 4. Zero return device | 1.Computer adopts zero return device with memory function to
guarantee the same adjustment standard, auto adjustment of correct
position to reduce the waste of boards. |
Features of printing units
| Item | Features |

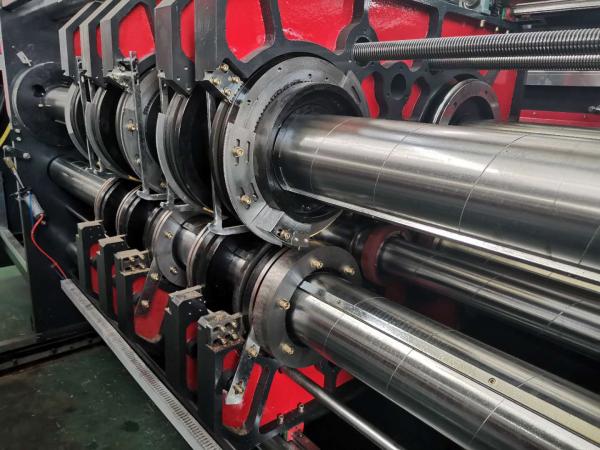

1. Printing cylinder | 1. Printing phase adjustment adopts satellite gear wheel structure,
PLC control, digital display, 360 degree circumferential
adjustment, stable start, correction positioning. 2. Grinded printing cylinder with harm chrome, with cross line and
center line, for convenient cliché fixation and sticking, correct
positioning and quick cliché registration. 3. Balance treatment, stable running, for high speed running. 4. Quick and convenient fixing system for the printing cliché. 5. Quick cliché change system to speed up the order renewal time. 6. Zero position device for printing cylinder for quick positioning
of cliché change and correction, for repeated carton specification
change. Foot stepping device for cliché fixation and dismantling.
Phase micro adjustment. 7. Printing cylinder left/right movement distance: 10mm. 8. Diameter of printing cylinder: ø524mm,ø304mm(with cliché
thickness) |
| 2. Impression cylinder(ø156mm) | 1. Seamless steel pipe for precise processing, balance
treatment for stable running, grinding and hard chromed. 2. Impression cylinder gap adopts adjustable offset ring, with
close structure, precise positioning, adjustment scope: 0-12mm. |
| 3. Feeding roll | 1. Up feeding roll: grinded and hard chromed. 2. Lower feeding roll: grinded, sand-frosted and hard-chromed. 3. Lower feeding shaft gap adjustment adopts offset ring with close
structure, correction positioning, adjustable at 0-12mm. |
4. Rubber roll
| Seamless steel pipe for precise processing, balance
treatment for stable running, grinding and hard chromed. 2. Steel pipe rubber-coated durable for longlife. 3. Super clutch and auto empty run device against ink dry. 4. Midheight grinding for high LPI big space printing. 5. Rubber roll open/close adopts worm gearbox manual adjustment,
with worm gearbox for gap adjustment with scale indication. |
| 5. Anilox roll | 1. Seamless steel pipe for precise processing, balance treatment
for stable running, grinding and hard chromed. 2. Longlife running, anti-grinding and erosion, ideal ink
transferring and controlling performance. 3. Pneumatic anilox auto elevation device and empty run device. 4. Speed difference between anilox roll and rubber roll for ink
doctoring effect to increase printing quality. |
| 6. Inking system | 1. Single-way pneumatic membrane auto circulating pump. 2. Ink filtering net to filter the dirt for nice printing result. 3. Encased ink chamber. |
| 7. Phase adjustment structure | 1. Satelite gear wheel design. 2. Motorized circumferential adjustment, digital display, 360
degree run or stop adjustment. 3. PLC control, quick reach, convenient for cliché adjustment. 4. Manual gap Pressure adjustment for all units. |
| 8. Printing cylinder fixed device | 1. Electromagnetic braking structure. 2. When machine unit separates or adjust phase, braking system to
control the running of machine units to keep original gear
positioning point. |
| 9. Printing cylinder fixed device | 1. Electromagnetic braking structure. 2. When machine unit separates or adjust phase, braking system to
control the running of machine units to keep original gear
positioning point. |
Take Your Packaging to the Next Level with High-End Printing
Slotter Die Cutters:
Packaging is an important aspect of any business. It is the first
thing that the customer sees and it should accurately reflect the
brand and product it represents. A well-designed and printed
packaging can make a lasting impression on the customer and even
influence their buying decision. This is why it is important to
invest in high-end printing, slotter, and die cutters for your
packaging needs.
Printing
High-end printing can make a big difference in the appearance of
your packaging. It allows for crisp, clear images and vibrant
colors that can enhance the overall look of the package. In
addition, printing can also provide additional information to the
customer, like instructions, product information, and legal
disclaimers, in a clear and concise manner. This can help the
customer make the right buying decision and even improve their
satisfaction with the product.
One of the popular printing techniques used for packaging is
flexography. Flexography employs a flexible relief plate that is
used to transfer ink onto the substrate. It is ideal for printing
on materials like plastic, paper, and foil. The process is fast,
efficient, and produces high-quality prints. Another popular method
is digital printing, which offers quick turnaround times and the
ability to print small runs.
