Two colors flexo Printer Slotter Die-Cutter Machine Jumbo
Model: 1600x3600
Automatic Carton Printing Machine Advantages:
1. CNC control system (Intelligent Control)
2. Environmental Protection and Energy Saving, use washable ink;
3. Apply to box for big household appliances such as refrigerator,
air-conditioner, and heavy industrial box, such as motorbike, auto
spare parts.
Product description
1· This automatic carton box making machine is designed and made to
high quality and safety standard,with the advantages of high speed,
auto control and quick order shift.
2· Auto high quality materials and parts.

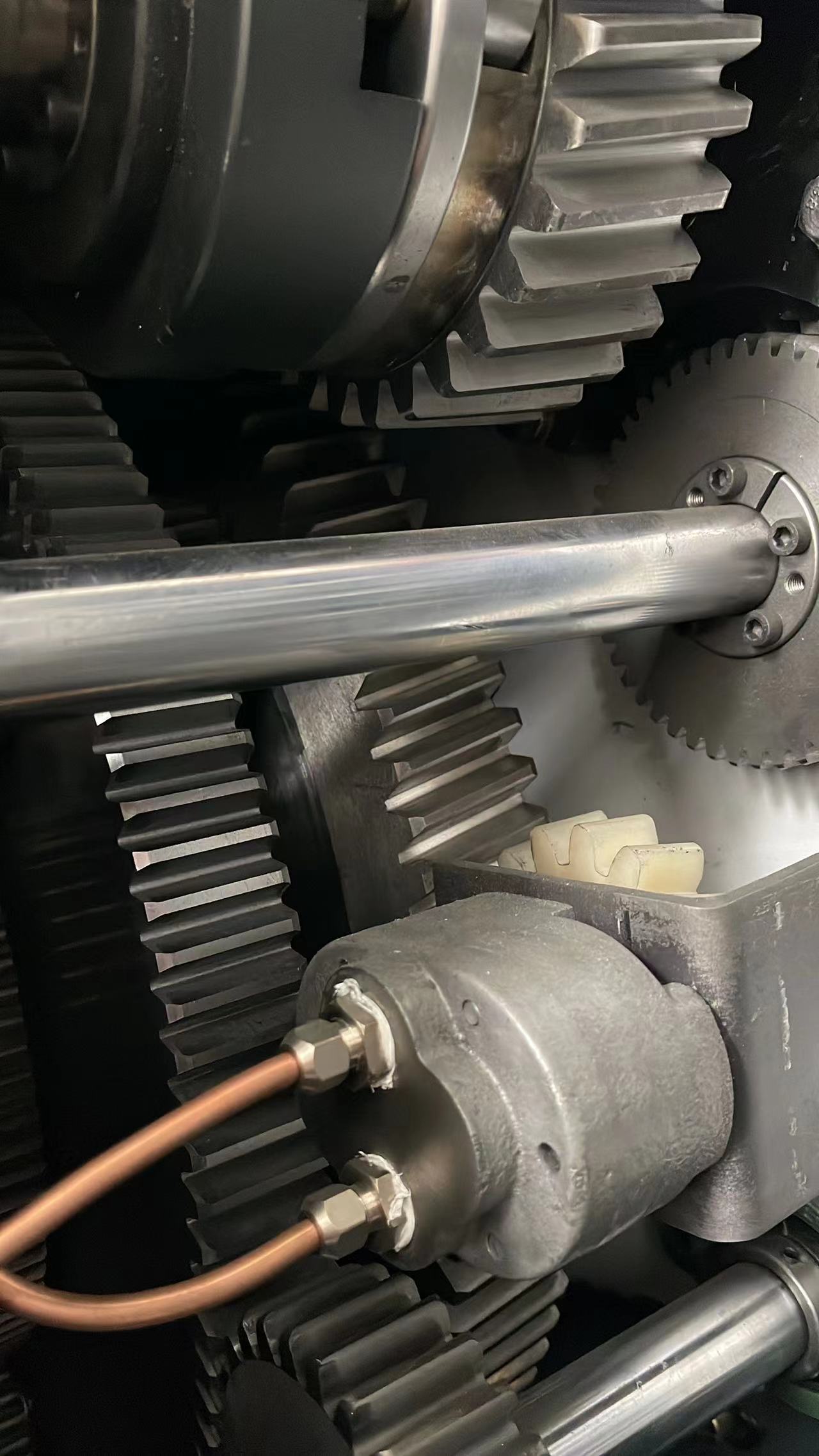

3· Well hardened and ground transmission gears, hardness more than
60(HRC).
4· Auto zero return and auto reset.
5· Use expansion sets tight link to reduce abrasion of the
shaft,keep precision of the machine for long years.
6· All cylinders and rollers are chromed plated for ideal hardness.
7· PLC control system with touch screen control.
8· Able to save order,speed up the order shift.
| Sheet size | 1600X3600mm |
| Design speed: | 160pcs/min. |
| Max. working speed: | 120pcs /min.(by sheet size and quality) |
| Max.working size: | 1600X3400 |
| Skip feeding size: | 1900mmX3600mm |
| Min.sheet size: | 350mmX600mm |
| Max.printing area: | 1600X3400mm |
| Cliché thickness: | 7mm |
| Slot width x Slot depth: | 7mmX400mm |
| Max. paper thickness | 10mm |
| Slotting accuracy | ±1.5mm |
| Printing registration(medium speed): | ±0.5mm |
| Mesh mode: | Optional(120-250LPI) |
| Dimension of the whole machine | 18300(L)x4100(W)x2500(H)mm |
| Total power(KW) | 35KW |
| Total weight(Ton) | 35TONS |
Another key function of a carton printing machine is slotting. The
machine has a specialized mechanism that allows it to cut and shape
the cardboard boxes or cartons according to the packaging demands
of different products. This means that the machine can slot cartons
of various shapes and sizes, including standard and custom shapes.
The slotting mechanism is accurate and precise, ensuring the
cartons are shaped perfectly to meet the demands of the product.
The machine can also slot cartons at a high speed, ensuring that
the packaging demands of different companies are met on time.
