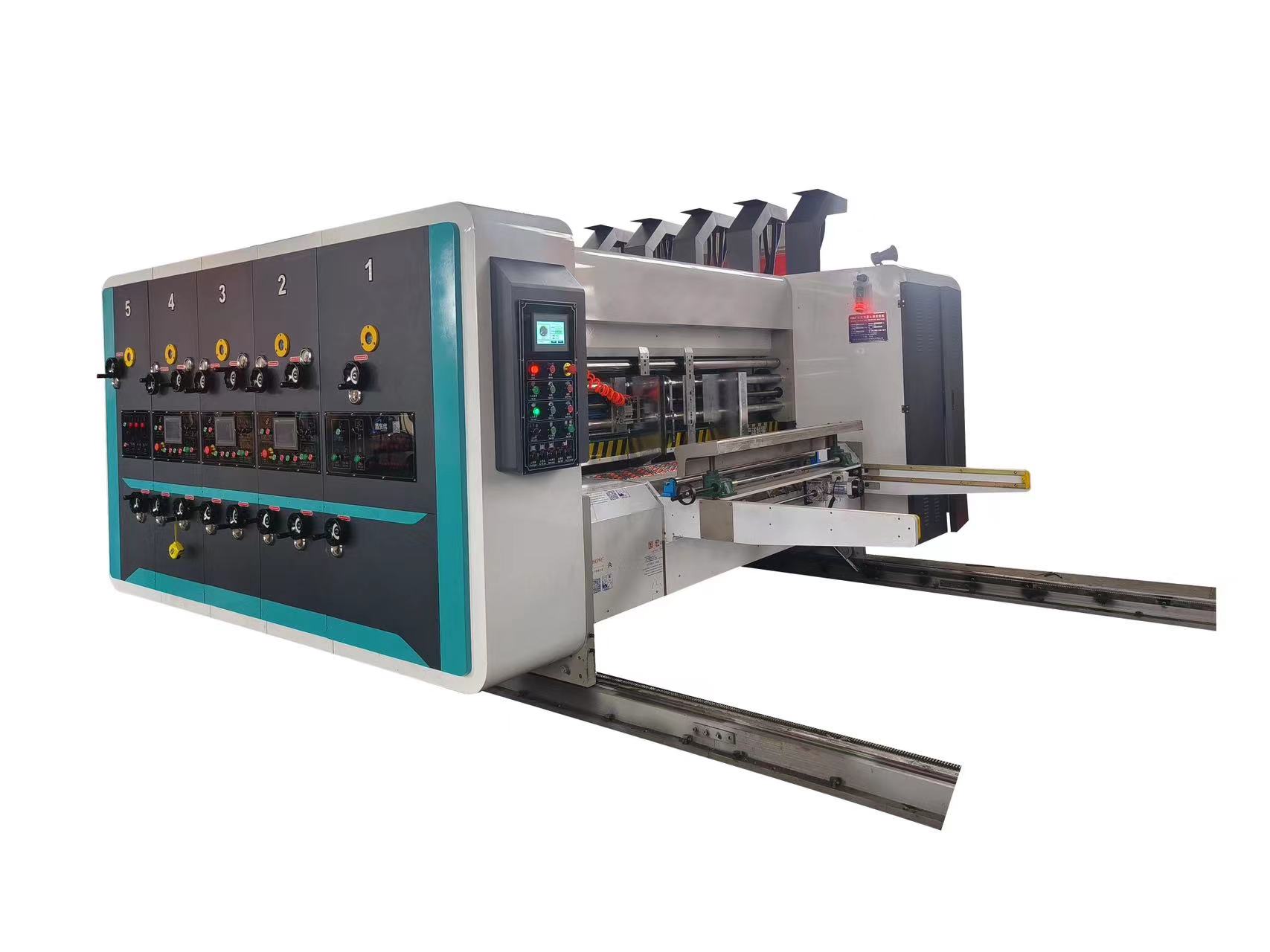

Machine size (LxWxH)

1. Lead Edge Feeding system

1. Vacuum transfer lead edge feeder.

2. Back buffle and side buffle are all motorized adjustment.

3. Feeder sliding block is of aluminum structure to guarantee a more stable working with less vibration.

4. Sheet counting in touch screen.

5. Skip feeding for bigger sheet.

7. Pneumatic lift device with end chain-lock switch for convenient operation.

1. Button auto control for machine open/close with alarm device to safeguard operators.

2. Pneumatic locking system, whole machine locked on fixed track by feeder main pneumatic cylinder.

1. High precision inverter to adjust the speed, 360 degree adjustment, quick time.

2. Phase zero positioning device to guarantee slotting position sameness.

1. Manual adjustment of creasing wheel and slotting knife head position through precise screw pole.

2. Creasing wheel down shaft, slotting knife down shaft adopt offset ring, close structure for precise positioning.

1. Blade thickness:7mm. Imported high quality alloyed moon-shaped saw slotting blades, high hardness, high endurability, high grindability.

2. Grinded and hard-chromed slotting shaft for stable running.

3. Manual adjustment of slotting knife head, creasing wheel and slitting knife head.

4. Auto detection device of slotting shaft circumferential position, auto record of the position and guarantee the position auto return.

5. Pre-creaser fixed before slotter.

6. Front knife and back knife seated on one shaft.

1. Die cutting mould cylinder( Down cylinder)

1. OD:ø537mm(with die cutting mould thickness);

2. Die cutting cylinder is made by high quality steel, fine grinding, hard chromed.

3. Balance treatment to increase stable running.

4. Die cutting mould fixation screws M10, hole distance at 100mm at transversal direction and 18 equal units at circumferential direction.

5. Die cutting wooden mould thickness 13-15mm(five ply), 16-18mm(three ply).

2. Rubber mat cylinder(Down cylinder)

1. OD: 434.2mm

2. Mat cylinder uses high quality steel, grinding, hard chromed.

3. Balance treatment for stable running.

4. Rubber mat thickness 8mm, width 250mm.

5. Rubber mat cylinder mechanical rotary direction change 40mm distance movement structure, movement speed same as the machine running speed.

6. Manual adjustment of die cutting mould gap, adjustment range: 0-16mm.

1. Satellite gearwheel structure

2. PLC and encoder control of die cutting phase adjustment for start and stop adjustment.

1.Pneumatic adjustment of paperboard stacking arm.

2.Stacking arm rotates belts, separate adjustment of belt tension, not limited by belt length.

1.Pneumatic cylinder control.

2.Auxilliary board delivery device for non-stop delivery.

3.Pneumatic stacking board for temporary support, manual adjustment of back buffle position.
