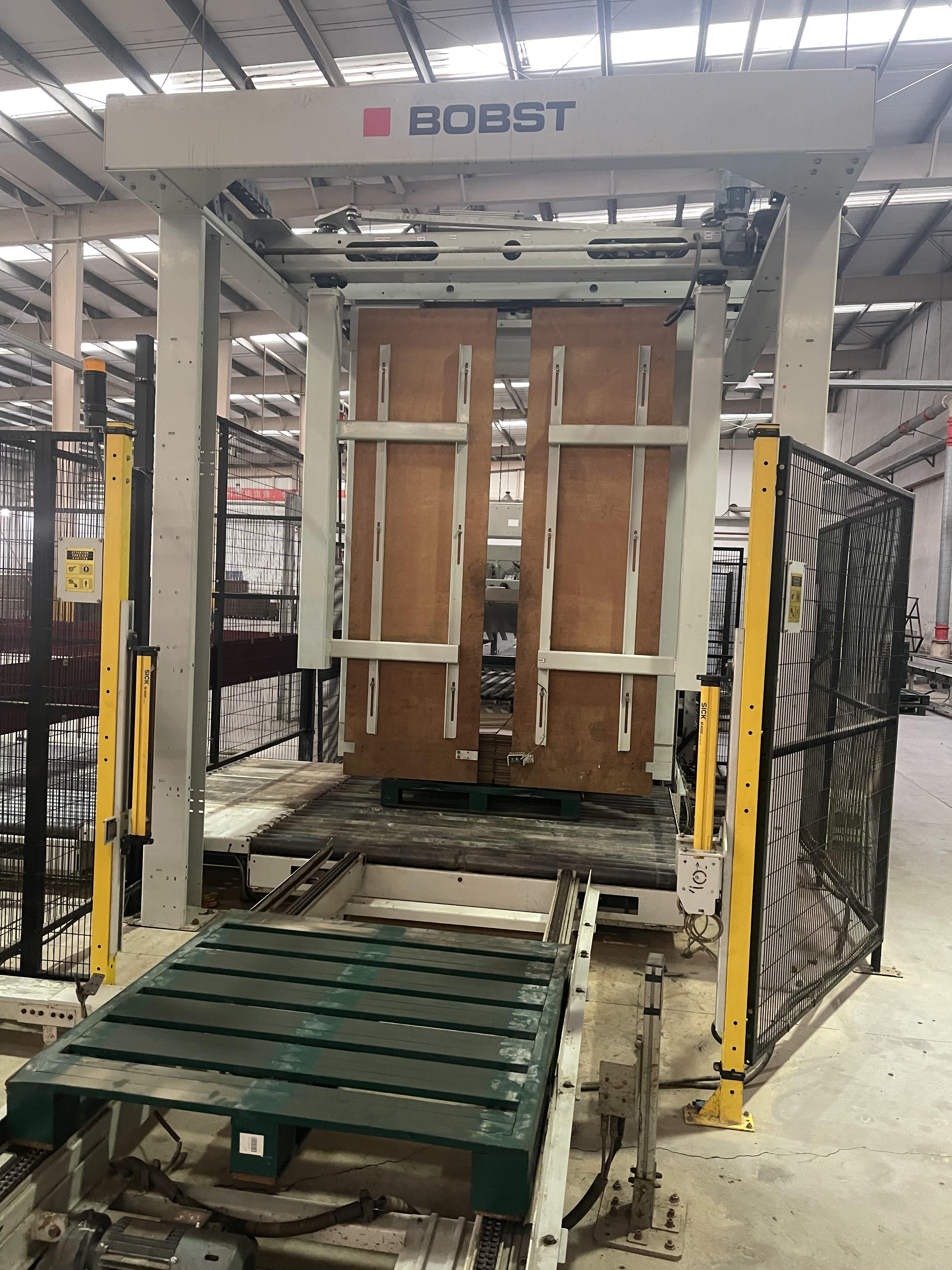

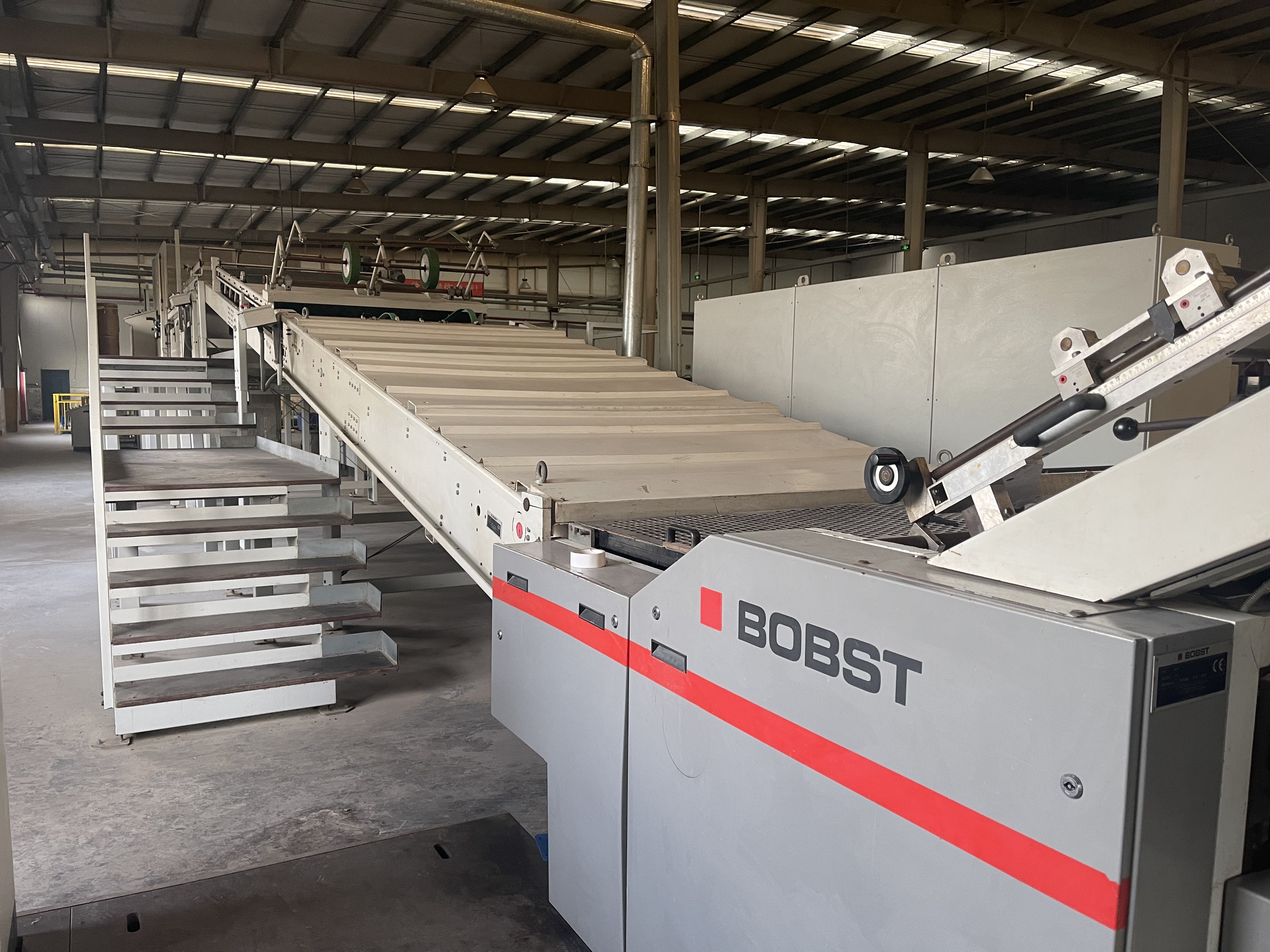

Used ultimate in-line laminator 1.6 for bobst brand

Model : 1650

EXPERTFLUTE and MASTERFLUTE TOUCH Panels for operations
Operating panel with touch screen
Used ultimate in-line laminator 1.6 for bobst brand

The three primary sections of the intuitive graphical HMI are the delivery, laminator, and wet-end sections.
Dashboard showing production and machine status
Fast access to equipment parameters and processes
For recurring orders, central data storage enables fast machine setup.

Materials that have been processed (1)
The top lining Top sheet: 180–400 g/m2; 60–240 g/m2

Medium-weight paper, 60–250 g/m2.
Lower limit: 60–300 g/m³
Ability Used ultimate in-line laminator 1.6 for bobst brand
Maximum and minimum sheet sizes are 1630 x 1650 mm and 550 x 550 mm.
Web width: between 550 and 1630 mm
Speed: 10,500 s/h
Maximum line speed: 180 m/min
Setting up
load connected to electricity (2) 110 kVA
Air under compression (2) 6 to 6 b
Capacity of air compressor (2) 125 m3/h Used ultimate in-line laminator 1.6 for bobst brand

Used ultimate in-line laminator 1.6 for bobst brand
