Cardboard Box Flexo Printer Slotter Die Cutter Machine

Ask Lasest Price
Brand Name :	HS
Model Number :	1600x3200
Certification :	CE
Price :	USD
Payment Terms :	T/T
Supply Ability :	20 units/month
Delivery Time :	100 -140days

Add to Cart

Product Details
Company Profile

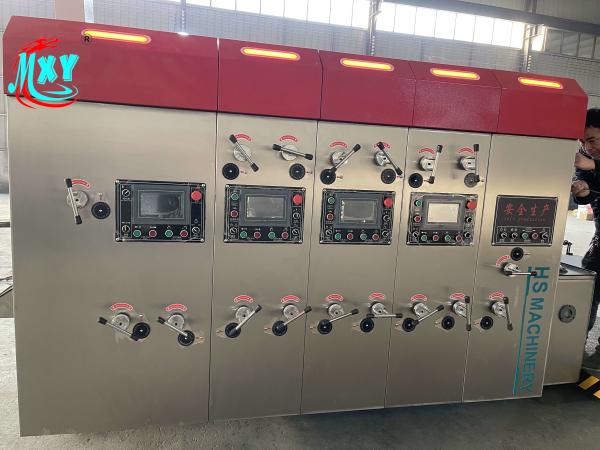

Cardboard Box Flexo Printer Slotter Die Cutter Machine

Cardboard Box Flexo Printer Slotter Die Cutter Machine

Model:1600x3200

Main Performance:

1. Adopt vacuum absorption, lead edge feeding paperboard, design and manufacturing, the whole operation is humanized design, can be set in a short time, modify, execute, replace, memory function, and accurate display.

2. Al transmission roller material, adopt high-quality steel, balanced correction, running smooth, surface grinding, hard chrome plating.

3. All gear drive, using high-quality alloy steel, heat treatment, grinding.

4.The oil automatic balance device, keeping each unit oil balance.

5. With automatic -returning-zero, record and memory, printing plate cleaned memory, order and dust removal, and other functions, can be selected combined with touch screen PLC control, easy operation.

6.Mesh roller:you can use Metallic or Ceramic Anilox Roller,anilox roller lines select according to user requirements.

Model	1600x3200
Machine Speed(m/min)	180
Machine Max.speed (pcs/min)	150
Machine Max.feeder Size(mm)	1600x3200
Machine min.feeder Size(mm)	450x760
Machine Max. printer size (mm)	1600x3100
thick of printer Plate(mm)	7.2
Max. slotter Dep (mm)	560
Max. Thickness of Sheet(mm)	15
Machine size (LxWxH)	21852x7370x2500

Lead Edge Feeder

Lead edge feeder

1) Lead edge feeding paper mechanism can greatly reduce clogging phenomenon in the process of feeding cardboard paper.
2) Suction fan auxiliary paper feeding, to ensure bend paperboard feeding
smoothly, the air volume can be adjusted for various sections according to the size of paperboard, ensure the maximize of the cardboard vacuum adsorption capacity, to make more accurate feeding paper.

Slotter Unit

Slotting Unit Features:

● Single shaft double-knife slotting, internal gear adjust the height of the box, and the lubricating oil is not easy to contaminate the carton.

● The upper pre-pressing wheel and the creasing wheel are covered with anvil ring, and the cardboard is not easy to be crushed.

● The lateral movement of the slotting knife adopts the lead screw and the linear guide rail, and the movement is flexible and accurate.

● The upper and lower knife holders are linked by transmission shafts, the upper and lower knives are accurate and the knife life is prolonged.

● Self-locking structure is adopted for the adjustment of slotting knife seat, preloading and indentation gap.

● The height adjustment of slotting tool box has anti-collision protection device, which will not damage the machine.

● Elastic chamfering knife structure, can cut three-layer and five-layer cardboard without adjustment, easy to operate
