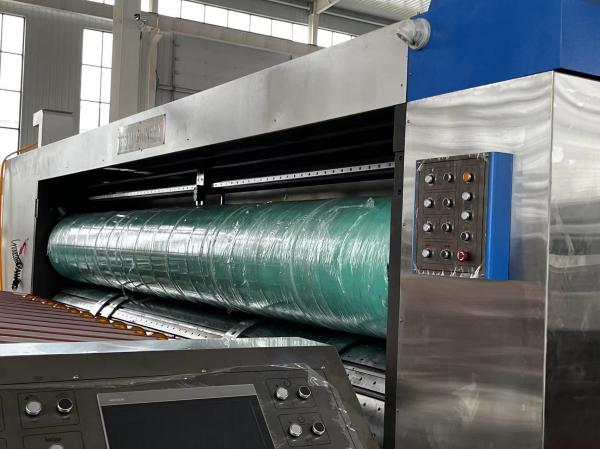

Corrugated Printing Die Cutting Machine
Model:1600x3200
1 Machine Function and Features
1.Four shaft lead edge vacuum transfer feeding system,the pressure
of suction is adopted frequency control,which can apply for
difference size and bending of cardboard.
2.The main drive system is adopted US EMERSON servo control.It can
make more accuracy and improve the service life of the machine
3.It is using precise screw with linear guide , which is prevent
the cutting holder locked with cutting shaft and make it more
accuracy.
4.Die cutting rubber roller is adopted Emerson servo drive with
mechanical speed compensation.
5.With No-key connection ring.There will be no clearance after long
time using., so that it has high precision for positioning and
exact overprint.
6.The transmission gear is made of high quality alloy steel, which
is processed by tungsten carbide and treated by heat treatment and
Rockwell hardness of 58-62 degrees.
7.With doctor blade interchange rubber roller structure;Change the
mechanical configuration more flexible.
8.Paper feeding wheel adopts rack type with quick adjusting
structure without wrench.
9.The pressure of 3ply 5ply 7ply is setting by our patent high
precision minor pressure adjustment,which work in with PLC and the
accuracy is +- 0.01.
| Model | 1600x3200 |
| Machine Speed(m/min) | 180 |
| Machine Max.speed (pcs/min) | 150 |
| Machine Max.feeder Size(mm) | 1600x3200 |
| Machine min.feeder Size(mm) | 450x760 |
| Machine Max. printer size (mm) | 1600x3100 |
| thick of printer Plate(mm) | 7.2 |
| Max. slotter Dep (mm) | 560 |
| Max. Thickness of Sheet(mm) | 15 |
Machine size (LxWxH)
| 21852x7370x2500 |
Lead Edge Feeder
1.Servo type None-pressure Lead edge feeder with vacuum suction, wind is adjustable depend on
sheet, make sure feed sheet smoothly.
2.Main motor with start protecting device, machine cannot run when machine units aren't lock
3.Continuous or skip feeding available
4.Double feed rollers wrapped with rubber, with groove prevent
overpressure, reduce pressed sheet
5.Left-right baffle adjusted by computer with automatic flap, back
baffle adjusted by motorized, front baffle manual synchronous
adjust.
6.Dust clearance bush and fan to clean dust on board. Air outlet
can be adjusted as per sheet size
7.Machine units move by motorized and move with alarm belling to make
sure safety.
8.The independent electric box controls the whole machine, and each
group can control the machine alone and operate more simply
Slotter Unit
Slotting Unit Features:
● Single shaft double-knife slotting, internal gear adjust the
height of the box, and the lubricating oil is not easy to
contaminate the carton.
● The upper pre-pressing wheel and the creasing wheel are covered
with anvil ring, and the cardboard is not easy to be crushed.
● The lateral movement of the slotting knife adopts the lead screw
and the linear guide rail, and the movement is flexible and
accurate.
● The upper and lower knife holders are linked by transmission
shafts, the upper and lower knives are accurate and the knife life
is prolonged.
● Self-locking structure is adopted for the adjustment of slotting
knife seat, preloading and indentation gap.
● The height adjustment of slotting tool box has anti-collision
protection device, which will not damage the machine.
● Elastic chamfering knife structure, can cut three-layer and
five-layer cardboard without adjustment, easy to operate
.
