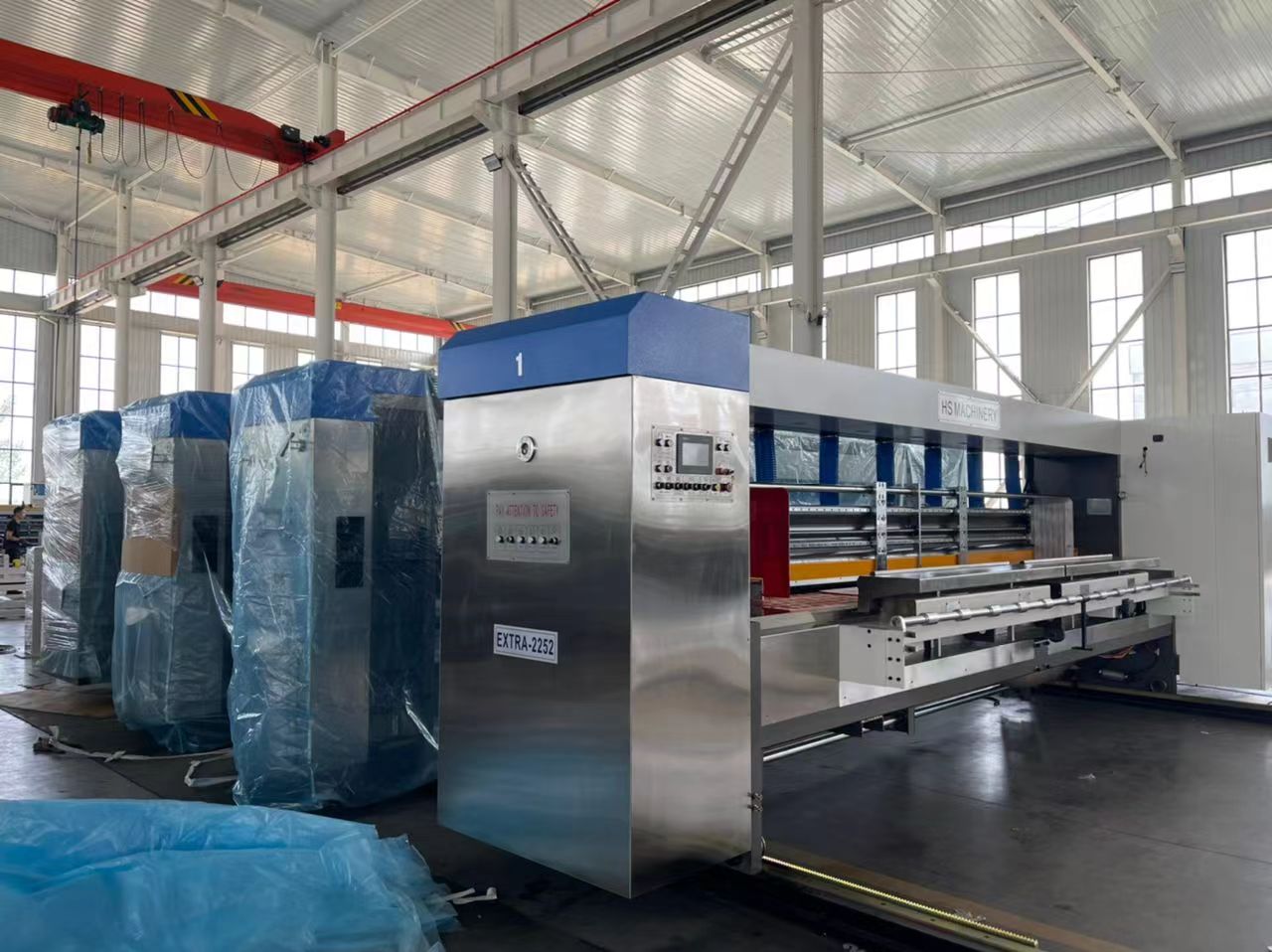

3 Colors Corrugated Box Printing Machine With Slotting
Model:1600x3200
Carton Machine Die Cutter Features
PLC Control 3 Colors Corrugated Box Printing Machine With Slotting
1.Corrugated Box Printing Machine Description:
A corrugated box printing machine is a machine that can directly
print patterns and text on corrugated cardboard, and is usually
used in the packaging industry.
It can improve production efficiency, save material costs, meet
individual needs, and enhance the aesthetics and brand image of
packaging.
2.Corrugated Box Printing Machine Feature Advantage:
Computer order storage and adjustment, faster order update and
convenient operation.
Complete machine wallboard and other important pieces are all made
by high precision process center and grind-ed by digit-controlled
grinder.
Al the transmission axle and rollers are made of high-quality steel
with high-precision dynamic balance, platedwith rigid chrome and
grinded surface.
The transmission gear adopts the high-quality steel, which is
grinded after heal-treatment, after long using, it stilmaintains
the high topping precision.
The main machine transmission parts adopt the hand-free connection
ring to eliminate the interval, suitable forlong-term high speed
printing.
The whole machine undergoes the spray lubrication and is equipped
with engine oil automatic balance facilties.
It possesses the print, die-cuting, slotting memory function, which
could return to Zero and Re-set automatically.
PCLINK control network, MCGS software, Siemens low voltage electric
appliance and host frequency
| Model | 1600x3200 |
| Machine Speed(m/min) | 180 |
| Machine Max.speed (pcs/min) | 150 |
| Machine Max.feeder Size(mm) | 1600x3200 |
| Machine min.feeder Size(mm) | 450x760 |
| Machine Max. printer size (mm) | 1600x3100 |
| thick of printer Plate(mm) | 7.2 |
| Max. slotter Dep (mm) | 560 |
| Max. Thickness of Sheet(mm) | 15 |
Machine size (LxWxH)
| 21852x7370x2500 |
Lead Edge Feeder
1.Servo type None-pressure Lead edge feeder with vacuum suction, wind is adjustable depend on
sheet, make sure feed sheet smoothly.
2.Main motor with start protecting device, machine cannot run when machine units aren't lock
3.Continuous or skip feeding available
4.Double feed rollers wrapped with rubber, with groove prevent
overpressure, reduce pressed sheet
5.Left-right baffle adjusted by computer with automatic flap, back
baffle adjusted by motorized, front baffle manual synchronous
adjust.
6.Dust clearance bush and fan to clean dust on board. Air outlet
can be adjusted as per sheet size
7.Machine units move by motorized and move with alarm belling to make
sure safety.
8.The independent electric box controls the whole machine, and each
group can control the machine alone and operate more simply
Slotter Unit
Slotting Unit Features:
● Single shaft double-knife slotting, internal gear adjust the
height of the box, and the lubricating oil is not easy to
contaminate the carton.
● The upper pre-pressing wheel and the creasing wheel are covered
with anvil ring, and the cardboard is not easy to be crushed.
● The lateral movement of the slotting knife adopts the lead screw
and the linear guide rail, and the movement is flexible and
accurate.
● The upper and lower knife holders are linked by transmission
shafts, the upper and lower knives are accurate and the knife life
is prolonged.
● Self-locking structure is adopted for the adjustment of slotting
knife seat, preloading and indentation gap.
● The height adjustment of slotting tool box has anti-collision
protection device, which will not damage the machine.
● Elastic chamfering knife structure, can cut three-layer and
five-layer cardboard without adjustment, easy to operate
.
